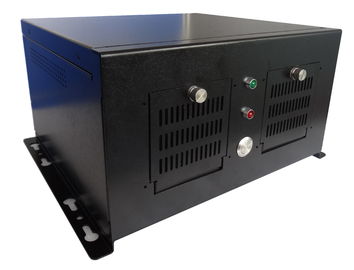

Embedded Industrial Computer BOX PC 1 PCI Or PCIE Expansion 10COM 2LAN
Product Details:
Place of Origin: Guangdong, China
Brand Name: Yanyue
Certification: CE, FCC
Model Number: MIS-ITX01B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: According to Quantity
Payment Terms: T/T
Supply Ability: motherboard 100000 pieces / month ; IPC 5000 sets / month
Contact Now
Detailed Product Description
Name: Embedded Industrial PC Expansion: 1 PCI Or PCIE
Adapt Motherboard: MINI ITX Motherboard CPU/GPU: I3 6100, Generations CPU Optional
Memory: 8G DDR4, 4G 16G DDR3 DDR4 Optional Hard Disk: Flexible Configuration
High Light:

industrial embedded computer

,

industrial pc case

MIS-ITX01B Embedded industrial PC, 1 PCI or PCIE extension Box PC, supporting Generations i3/i5/i7 CPU, supporting multiple serial port


Features:



■ Heat Dissipation, Dust Prevention and Seismic Resistance

■ Support all Mini ITX motherboards of Yanyue

■ Supporting One PCI or PCIEx16 expansion

■ Additional 10COM 10USB, 1Parallel and 2LAN

■ One DB37 can be introduced later.

■ Dust-proof sponge can be replaced and cleaned without shutting down the machine

Flexible configuration.



Specification parameters Optional configuration
Chassis All steel structure, powder-sprayed black Optional industrial grey and other colors
Front POWER/HDD Indicator Lamp, Power Button Switch,Two suction fans can replace and clean dust-proof sponge without shutting down Customizable customer LOGO or other requirements
Back Main board large square hole, 1 expansion slot; 9 DB9, 1 DB25, 2 USB interface bits, 2 WIFI antenna slots, ,1 DB37 Customizable other interface bits
Hard disk rack 1 anti-seismic hard disk rack, supporting one 3.5 inch or two 2.5 inch hard disk
Adapt motherboard Intel B75/H81/H110 chip MINI-ITX motherboard Optional all ITX motherboard of Yanyue
CPU/GPU Intel i3 2120 Support 3, 4, 6, 7 generations desktop CPU or board CPU
Memory 4G DDR3 Optional 2G/8G/16G notebook memory
Hard disk 128G MSATA Optional 32G/64G/256G Msata solid state hard disk; support 3.5 inch mechanical hard disk or 2.5 inch capacity hard disk
Interface AC input; 6USB (2 USB3.0); 2RJ45 (gigabit); 2VGA; HDMI, audio output; MIC input; 6COM (standard) Optional extraction of all interfaces on the chassis
Extension 1 PCI Extension Three, four, six and seven generations all support one PCIEx16 extension.
Size No bracket:241mm * 223mm * 130mm Net/Gross Weight 3.5/4KG
Industrial Power Supply 200W Industrial 1U Power Supply
Installation mode Bracket installation
Work and Environment
Working temperature 0~60℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity, no condensation
    Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration
Installation Dimension Diagram  Embedded Industrial Computer BOX PC 1 PCI Or PCIE Expansion 10COM 2LAN 0



Embedded Industrial Computer BOX PC 1 PCI Or PCIE Expansion 10COM 2LAN 1Embedded Industrial Computer BOX PC 1 PCI Or PCIE Expansion 10COM 2LAN 2Embedded Industrial Computer BOX PC 1 PCI Or PCIE Expansion 10COM 2LAN 3Embedded Industrial Computer BOX PC 1 PCI Or PCIE Expansion 10COM 2LAN 4
