4 Slots Expansion Embedded Industrial PC computer support generations i3 i5 i7 CPU

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Yanyue
Certification:	CE, FCC
Model Number:	MIS-MATX02

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Wooden Box
Delivery Time:	According to Quantity
Payment Terms:	T/T
Supply Ability:	motherboard 100000 pieces / month ; IPC 5000 sets / month

Contact Now

Detailed Product Description

Name:	Embedded Industrial PC	Expansion:	Four Slots(PCIE X16; PCIE X4; 2PCI)
Adapt Motherboard:	All Of Micro ATX Motherboard	CPU/GPU:	Generations I3 I5 I7 Optional
Memory:	4G 8G 16G 32G 64G DDR3 DDR4 Optional	Hard Disk:	64G 128G 256G 512G 1T SSD Or 1T 2T Mechanical Optional
High Light:	industrial embedded computer , industrial embedded computers

MIS-MATX02 Embedded industrial computer, Four Slots extension, supporting Generations i3/i5/i7 CPU,supporting multiple serial ports

Features:

■ Heat Dissipation, Dust Prevention and Seismic Resistance

■ Supporting all Micro-ATX motherboards of Yanyue

■ Four Expantion Slots

■ Extra 10COM 10USB, 1Parallel and 2LAN

■ Flexible configuration, flexible configuration of CPU, memory, hard disk according to customer requirements

Specification parameters				Optional configuration
Chassis	All-steel structure, powder-sprayed black			Optional industrial grey and other colors

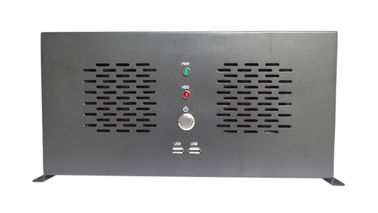

Front	POWER/HDD indicator, power button switch, 2 suction fans, 2 USB2.0			Customizable customer LOGO or other requirements
Back	Main board square hole, 4 expansion slots; 10 DB9, 1 DB25, 4 USB interface bits			Customizable other interface bits
Hard disk rack	one 2.5 inch hard drive rack			Can add 1 anti-seismic hard disk rack, support 3.5 inch or 2.5 inch hard disk
Adapt motherboard	Inter B75//H81//H110 chip Micro-ATX_5 motherboard			Miro-ATX motherboard of Yanyue is available
CPU/GPU	Intel i3 2120			Support 3, 4, 6, 7 generations desktop CPU or board CPU
Memory	4G DDR3			Optional 2G/8G/16G/32G memory
Hard disk	128G MSATA			Optional 32G/64G/256G Msata solid state hard disk; support 3.5 inch mechanical hard disk or 2.5 inch capacity hard disk
Interface	AC input; 6USB (4 USB 3.0); 2RJ45 (gigabit); VGA; HVI, audio output; MIC input; 6COM (standard)			Optional extraction of all interfaces on the chassis
Extansion	PCIEx16; PCIEx4; 2PCI			Depending on the expansion slot on the motherboard
Size	No bracket:320mm * 311mm * 158mm			Net/Gross Weight	4.5/5KG
Industrial Power Supply	200W Industrial 1U Power Supply
Installation mode	Bracket installation
Work and Environment
Working temperature	0～60℃	Storage temperature	-40～75℃	Environmental humidity	0~90% air humidity, no condensation
		Vibration	5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC	GB9254-2008 class A		Shock	10g acceleration, 11ms duration
Installation Dimension Diagram
