Shenzhen Yanyue Technology Co., Ltd
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | Yanyue |
| Certification: | CE, FCC |
| Model Number: | IPPC-2406TW1 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 100000 pieces / month ; IPC 5000 sets / month |
| Name: | Industrial Touch Panel PC | Adapt Motherboard: | Low Power ITX Motherboard |
|---|---|---|---|
| Touch Screen: | Capacitance Screen | CPU/GPU: | Intel I5 3317U |
| Memory: | 4G DDR3 | Hard Disk: | 128G MSATA |
| High Light: | industrial touch screen panel,embedded touch screen computer |
||

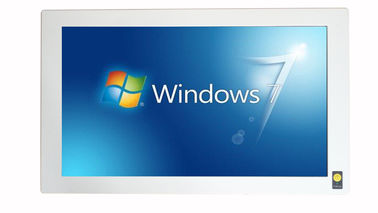

IPPC-2406TW1 23.8" wide-screen touch industrial Panel PC, multiple board paste I3/I5/I7 U series CPU motherboard for choice
Features:
■ Ultra-low power, thin design
■ Selection of I3/I5/I7 U Series CPU motherboards
■ Standard dual network 1 Serial 2 USB, other interface OEM
■ Supporting simultaneous installation of mSATA solid state hard disk and 2.5 inch mechanical/solid state hard disk
■ Various installation options
■ Resistance Touch Screen, OEM Capacitance Screen
| Specification parameters | Optional configuration | |||||||
| Front panel | Paint grey-white, POWER keys and indicator lights | Optional black or other colors | ||||||
| Back chassis | 1.2mm steel plate, grey white | Optional industrial black or other colours | ||||||
| Adapt motherboard | Low power ITX motherboard | Optional all low power ITX motherboards of Yanyue | ||||||
| LCD screen | 23.8"TFT, LED backlight; Resolution 1920 * 1024; Lattice: 0.2745 * 0.2745; Maximum color: 16.7M; Brightness: 250cd/; Contrast: 1000:1; Reaction time: 14ms; MTBF: 30,000h Visual angle: (+89 -89)(+89 -89); | |||||||
| Touch screen | Capacitance Screen | Customizable Resistance Screen | ||||||
| CPU/GPU | Intel i5 3317U | Optional J1900/3th, 4th, 6th and 7th Generation U Series CPUs | ||||||
| Memory | 4G DDR3 | Optional 2G/8G/16G DDR3 notebook memory | ||||||
| Hard disk | 128G MSATA | Optional 32G/64G/256G Msata solid state hard disk; 2.5 "500G/1T/2T mechanical hard disk and 512G/1T solid state hard disk | ||||||
| Interface | DC12V; 2USB; 2RJ45 (gigabit); VGA; HDMI, audio output; MIC input; 1 antenna aperture; 1COM; DC interpolation | Optional 8USB or 6COM or 1LPT; plug-in location can be customized Phoenix terminal, can customize wide-voltage input | ||||||
| Size | 614 mm (length)* 367 mm (width)* 57 mm (thickness) | Weight | 12/13KG | |||||
| Industrial Power Supply | 12V@5A adapter, Taiwan Qiaowei Brand | Optional non-configuration | ||||||
| Installation mode | Embedded screw installation; Embedded hook installation; VISA wall mounting installation | |||||||
| Work and Environment | ||||||||
| Working temperature | 0～60℃ | Storage temperature | -40～75℃ | Environmental humidity | 0~90% air humidity, no condensation | |||
| IP Level | Panel IP62 | Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration | |||||
| EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration | |||||
| Installation Dimension Diagram |  |
|||||||
