MIS-EPIC06 IPC Box Fanless Board Pasted 6 Generation I3 I5 I7 U Series CPU

MIS-EPIC06 IPC Box Fanless Board Pasted 6 Generation I3 I5 I7 U Series CPU

  • MIS-EPIC06 IPC Box Fanless Board Pasted 6 Generation I3 I5 I7 U Series CPU
  • MIS-EPIC06 IPC Box Fanless Board Pasted 6 Generation I3 I5 I7 U Series CPU
MIS-EPIC06 IPC Box Fanless Board Pasted 6 Generation I3 I5 I7 U Series CPU
Product Details:
Place of Origin: Guangdong, China
Brand Name: Yanyue
Certification: CE, FCC
Model Number: MIS-EPIC06
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: According to Quantity
Payment Terms: T/T
Supply Ability: motherboard 100000 pieces / month ; IPC 5000 sets / month
Contact Now
Detailed Product Description
Name: Embedded Industrial PC Hard Disk Rack: 1 Hard Disk Rack, Supporting 1 2.5 Inch Hard Disk
Adapt Motherboard: Special Board Sticks The Motherboard Of 6th And 7th Generation CPU CPU/GPU: Intel I3 6100U
Memory: 4G DDR3 Hard Disk: 128G MSATA
High Light:

fanless embedded system

,

fanless industrial computer

MIS-EPIC06 All-aluminium fan-free embedded IPC, board-pasted 6-generation i3/i5/i7 U series CPU, dual-network 6-series 1


Features:



■ All-aluminium toothed fan-free design, fully sealed

■ Supporting 6 Generation I3/I5/I7 U Series CPUs

■ Double Intel Gigabit Port, 6 Series 10USB

■ Support MSATA + 2.5 inch dual hard disk

■ Supporting VGA+HDMI Independent Double Display

■ Flexible configuration



Specification parameters Optional configuration
Chassis All-aluminium toothed chassis, sandblasting oxidation black Other colours can be customized
Front Switch with power indicator; 4COM; 4USB2.0, GPIO Customizable LOGO or more serial or parallel ports

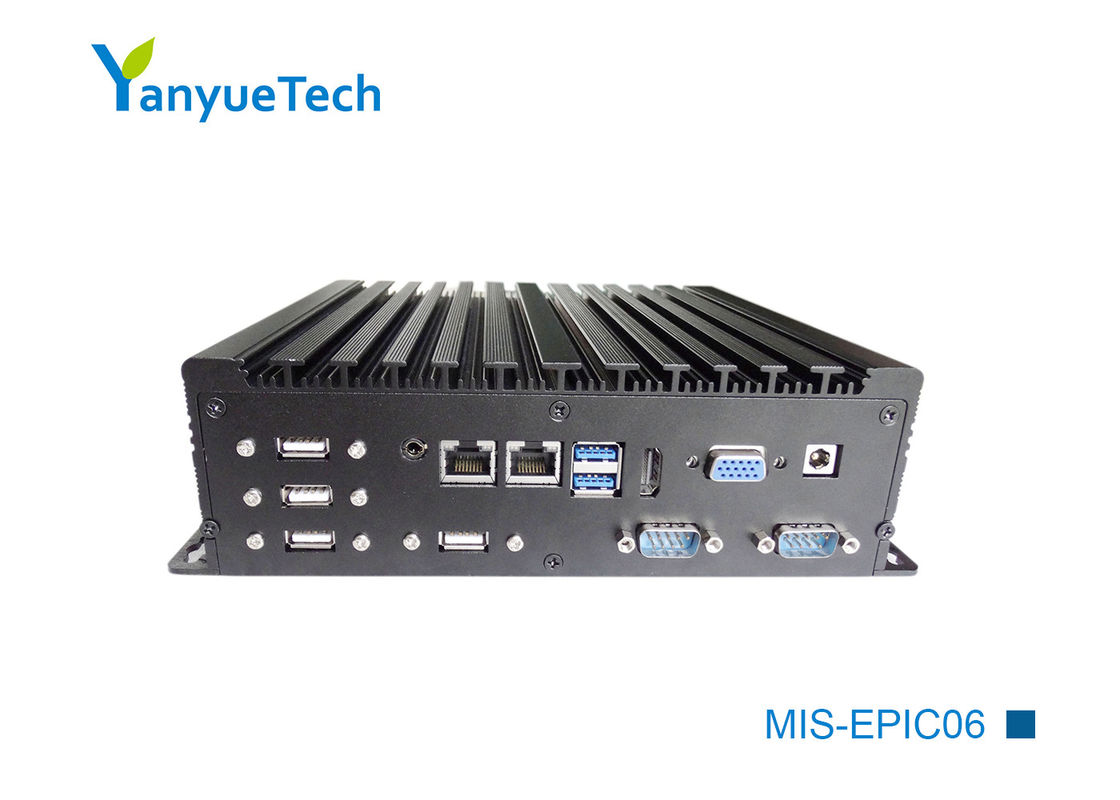

Back DC 12V; VGA + HDMI display; 2USB3.0; 2RJ45 Gigabit Network Port Line out; 2COM; 4USB Two antenna apertures can be customized for 4G or WIFI
Hard disk rack 1 hard disk rack, supporting 1 2.5 inch hard disk
Adapt motherboard Special board sticks the motherboard of 6th and 7th generation CPU
CPU/GPU Intel i3 6100U Optional board sticker i5 6200U or i7 6500U
Memory 4G DDR4 Optional 8G/16G DDR4 notebook memory
Hard disk 128G MSATA Optional 32G/64G/256G Msata solid state hard disk; support 2.5 inch solid state hard disk and mechanical hard disk
Size 226*200*64.5mm Net/Gross Weight 3.5/4KG
Industrial Power Supply Standardized 12V@5A adapter
Installation mode Bracket installation
Work and Environment
Working temperature 0~60℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity, no condensation
    Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration
Installation Dimension Diagram  MIS-EPIC06 IPC Box Fanless Board Pasted 6 Generation I3 I5 I7 U Series CPU 0



MIS-EPIC06 IPC Box Fanless Board Pasted 6 Generation I3 I5 I7 U Series CPU 1MIS-EPIC06 IPC Box Fanless Board Pasted 6 Generation I3 I5 I7 U Series CPU 2MIS-EPIC06 IPC Box Fanless Board Pasted 6 Generation I3 I5 I7 U Series CPU 3
