All Aluminum Embedded Industrial PC / Industrial Box PC 2LAN 6COM 6USB

All Aluminum Embedded Industrial PC / Industrial Box PC 2LAN 6COM 6USB

  • All Aluminum Embedded Industrial PC / Industrial Box PC 2LAN 6COM 6USB
  • All Aluminum Embedded Industrial PC / Industrial Box PC 2LAN 6COM 6USB
  • All Aluminum Embedded Industrial PC / Industrial Box PC 2LAN 6COM 6USB
  • All Aluminum Embedded Industrial PC / Industrial Box PC 2LAN 6COM 6USB
All Aluminum Embedded Industrial PC / Industrial Box PC 2LAN 6COM 6USB
Product Details:
Place of Origin: Guangdong, China
Brand Name: Yanyue
Certification: CE, FCC
Model Number: MIS-ITX06
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: According to Quantity
Payment Terms: T/T
Supply Ability: motherboard 100000 pieces / month ; IPC 5000 sets / month
Contact Now
Detailed Product Description
Name: Embedded Industrial PC Hard Disk Rack: 1 Hard Drive Rack, Support 1 2.5 Inch Hard Drive
Adapt Motherboard: All Low Power MINI-ITX Motherboards OfYanyue CPU/GPU: Intel I5 3317U
Memory: 4G DDR3 Hard Disk: 128G MSATA
High Light:

industrial embedded computer

,

industrial embedded computers

,

All Aluminum Embedded Industrial PC

MIS-ITX06  All-Aluminum Embedded Industrial Computer, I3/i5/i7 U Series CPU, Double Network 6 Series 6USB



Features:

Full aluminium toothed chassis

Supporting all low power Mini-ITX motherboards of Yanyue

Double Network 6 Series 6 USB

Support MSATA + 2.5 inch dual hard disk

Supporting VGA+HDMI Independent Double Display

Flexible configuration to support WIFI or 4G



Specification parameters Optional configuration
Chassis All-aluminium toothed chassis, sandblasted titanium oxide ash Optional other colors

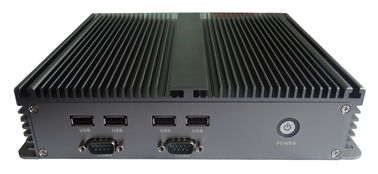

Front Switch with power indicator; 2COM; 4USB2.0 Customizable customer LOGO or other requirements

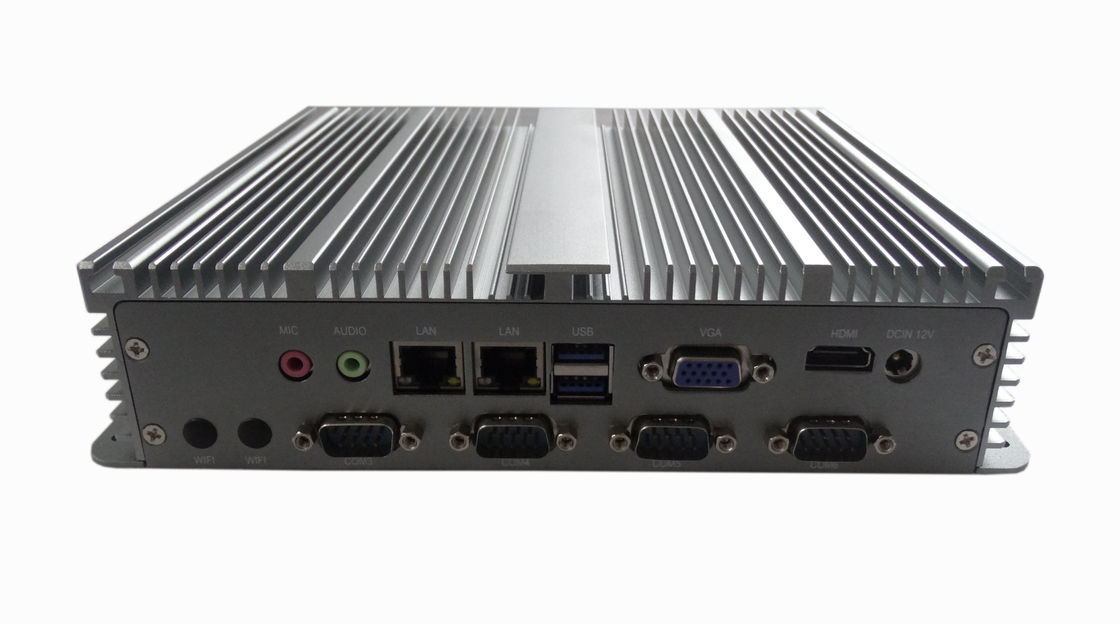

Back DC 12V input; VGA + HDMI display; 2USB; 2RJ45 gigabit network port Line out + MIC in; 4COM; 2 antenna aperture (support WIFI or 4G) 6 Serial port is RS232 by default, RS422 or RS485 can be selected; except for the 3rd generation U motherboard, the others all support 2 USB3.0.
Hard disk rack 1 hard drive rack, support 1 2.5 inch hard drive Optional dual hard drive rack
Adapt motherboard All low power MINI-ITX motherboards ofYanyue
CPU/GPU Intel i5 3317U Optional board paste Intel J1900 and i3/i5/i7 U series CPU; Optional 2 and 3 generation i3/i5/i7 M series notebook CPU
Memory 4G DDR3 Optional 2G/8G/16G notebook memory
Hard disk 128G MSATA Optional 32G/64G/256G Msata solid state hard disk; support 3.5 inch mechanical hard disk or 2.5 inch capacity hard disk
Size 234*202*56mm (including the height of the foot, the foot can not be removed) Net/Gross Weight 2.5/3KG
Industrial Power Supply Standardized 12V@5A adapter
Installation mode Bracket installation
Work and Environment
Working temperature 0~60℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity, no condensation
    Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration

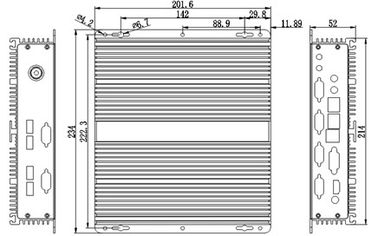

Installation Dimension Diagram  All Aluminum Embedded Industrial PC / Industrial Box PC 2LAN 6COM 6USB 0

All Aluminum Embedded Industrial PC / Industrial Box PC 2LAN 6COM 6USB 1All Aluminum Embedded Industrial PC / Industrial Box PC 2LAN 6COM 6USB 2All Aluminum Embedded Industrial PC / Industrial Box PC 2LAN 6COM 6USB 3All Aluminum Embedded Industrial PC / Industrial Box PC 2LAN 6COM 6USB 4



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.
