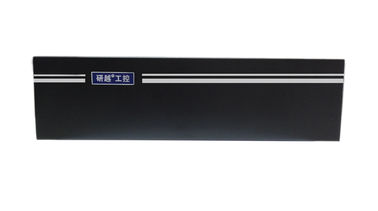

Industrial Embedded Computers 2 slots Expansion I3 I5 I7 CPU Supporting

Industrial Embedded Computers 2 slots Expansion I3 I5 I7 CPU Supporting

  • Industrial Embedded Computers 2 slots Expansion I3 I5 I7 CPU Supporting
  • Industrial Embedded Computers 2 slots Expansion I3 I5 I7 CPU Supporting
  • Industrial Embedded Computers 2 slots Expansion I3 I5 I7 CPU Supporting
  • Industrial Embedded Computers 2 slots Expansion I3 I5 I7 CPU Supporting
  • Industrial Embedded Computers 2 slots Expansion I3 I5 I7 CPU Supporting
  • Industrial Embedded Computers 2 slots Expansion I3 I5 I7 CPU Supporting
  • Industrial Embedded Computers 2 slots Expansion I3 I5 I7 CPU Supporting
  • Industrial Embedded Computers 2 slots Expansion I3 I5 I7 CPU Supporting
Industrial Embedded Computers 2 slots Expansion I3 I5 I7 CPU Supporting
Product Details:
Place of Origin: Guangdong, China
Brand Name: Yanyue
Certification: CE, FCC
Model Number: MIS-MATX07
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: According to Quantity
Payment Terms: T/T
Supply Ability: motherboard 100000 pieces / month ; IPC 5000 sets / month
Contact Now
Detailed Product Description
Name: Embedded Industrial PC Hard Disk Rack: One 2.5 Inch Hard Drive Rack
Adapt Motherboard: Inter B75//H81//H110 Chip Micro-ATX_5 Motherboard CPU/GPU: Intel I3 2120
Memory: 4G DDR3 Hard Disk: 128G MSATA
High Light:

industrial embedded computer

,

industrial embedded computers

,

i3 2120 Industrial Embedded Computers



MIS-MATX07 Embedded IPC, 2 horizontal expansion bits, supporting i3/i5/i7 CPU, supporting multiple COM



Features:

■ Heat Dissipation, Dust Prevention and Seismic Resistance

■ Supporting all Micro-ATX motherboards of Yanyue

■ Supporting 2 PCI or PCIE lateral extensions

■ An extra string of 4USB can be introduced on back

■ Flexible configuration, flexible configuration of CPU, memory, hard disk according to customer requirements



Specification parameters Optional configuration
Chassis All-steel structure, powder-sprayed black Optional industrial grey and other colors
Front None Customizable customer LOGO or other requirements
Back Main board big square hole, 2 lateral expansion slots, 1 DB9, 4 USB Customizable other interface bits
Side 2 suction fans
Hard disk rack one 2.5 inch hard drive rack Support MSATA and 2.5 inch dual hard disk
Adapt motherboard Inter B75//H81//H110 chip Micro-ATX_5 motherboard Miro-ATX motherboard of Yanyue is available
CPU/GPU Intel i3 2120 Support 3th, 4th, 6th, 7th generations desktop CPU or board CPU
Memory 4G DDR3 Optional 2G/8G/16G/32G memory
Hard disk 128G MSATA Optional 32G/64G/256G Msata solid-state hard disk; supports 2.5 inch hard disks with various capacities
Interface AC input; 6USB (4 USB 3.0); 2RJ45 (gigabit); VGA; HVI, audio output; MIC input; 6COM (standard) Optional 32G/64G/256G Msata solid state hard disk; support 3.5 inch mechanical hard disk or 2.5 inch capacity hard disk
Extansion 2 expansion slots Optional extraction of any two expansion slots on the motherboard
Size No bracket:320mm * 311mm * 158mm Net/Gross Weight 4.5/5KG
Industrial Power Supply 200W Industrial 1U Power Supply
Installation mode Bracket installation
Work and Environment
Working temperature 0~60℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity, no condensation
    Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration
Installation Dimension Diagram  Industrial Embedded Computers 2 slots Expansion I3 I5 I7 CPU Supporting 0



Industrial Embedded Computers 2 slots Expansion I3 I5 I7 CPU Supporting 1Industrial Embedded Computers 2 slots Expansion I3 I5 I7 CPU Supporting 2Industrial Embedded Computers 2 slots Expansion I3 I5 I7 CPU Supporting 3Industrial Embedded Computers 2 slots Expansion I3 I5 I7 CPU Supporting 4





FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
