Embedded Industrial PC 1 PCI Or PCIE Extension I3 I5 I7 CPU Multiple Serial Ports

Features:

■ Heat Dissipation, Dust Prevention and Seismic Resistance

■ Support all Mini-ITX motherboards of Yanyue

■ Supporting a PCI or PCIEx16 extension

■ 9 additional antenna slots and 2 additional antenna slots can be introduced later.

■ Up to 12 serial ports and 14 USB

■ Dust-proof sponge can be replaced and cleaned without shutting down the machine

Specification parameters							Optional configuration
Chassis	All steel structure, powder-sprayed black						Optional industrial grey and other colors
Front	POWER/HDD Indicator Lamp, Power Button Switch,Two suction fans can replace and clean dust-proof sponge without shutting down						Customizable customer LOGO or other requirements

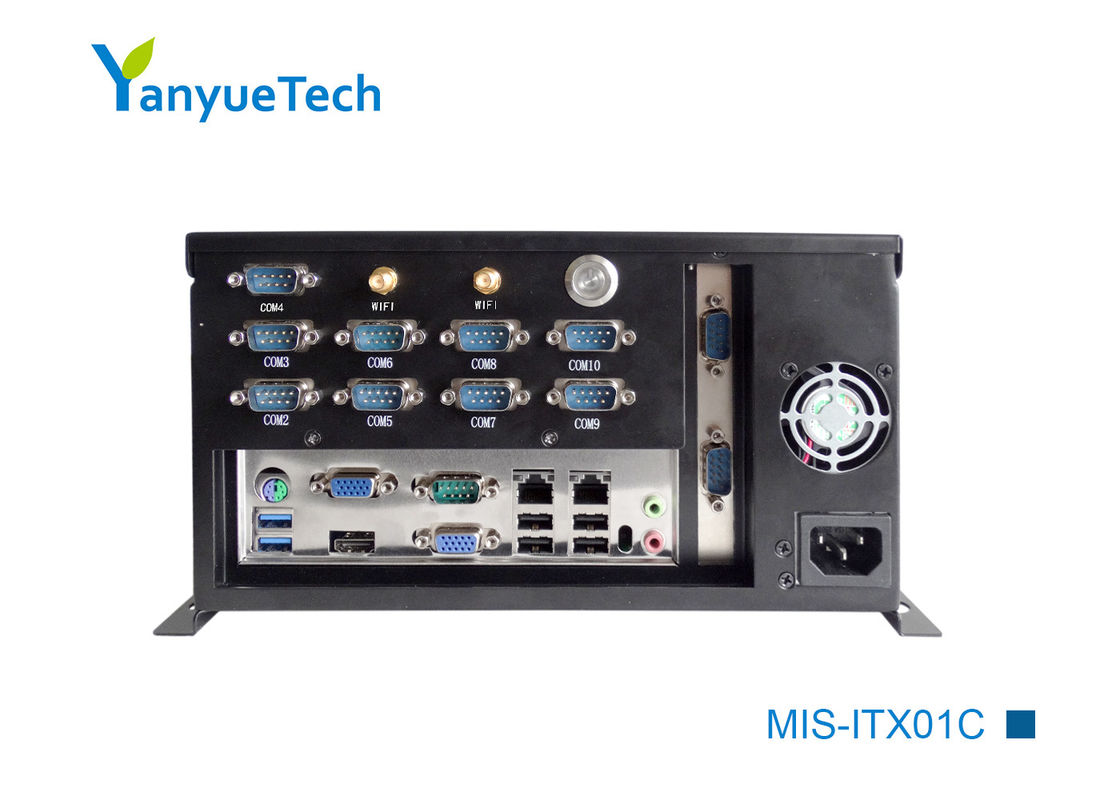

Back	Main board large square hole, 1 expansion slot; 9 DB9, 1 DB25, 2 USB interface bits, 2 WIFI antenna slots, ,1 DB37						Customizable other interface bits
Hard disk rack	1 anti-seismic hard disk rack, supporting one 3.5 inch or two 2.5 inch hard disk
Adapt motherboard	Intel B75/H81/H110 chip MINI-ITX motherboard						Optional all ITX motherboard of Yanyue
CPU/GPU	Intel i3 2120						Support 3, 4, 6, 7 generations desktop CPU or board CPU
Memory	4G DDR3						Optional 2G/8G/16G notebook memory
Hard disk	128G MSATA						Optional 32G/64G/256G Msata solid state hard disk; support 3.5 inch mechanical hard disk or 2.5 inch capacity hard disk
Interface	AC input; 6USB (2 USB3.0); 2RJ45 (gigabit); 2VGA; HDMI, audio output; MIC input; 6COM (standard)						Optional extraction of all interfaces on the chassis
Extension	1 PCI Extension						Three, four, six and seven generations all support one PCIEx16 extension.
Size	No bracket:241mm * 223mm * 130mm						Net/Gross Weight	3.5/4KG
Industrial Power Supply	200W Industrial 1U Power Supply
Installation mode	Bracket installation
Work and Environment
Working temperature	0～60℃		Storage temperature		-40～75℃		Environmental humidity	0~90% air humidity, no condensation
			Vibration		5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC	GB9254-2008 class A				Shock		10g acceleration, 11ms duration
Installation Dimension Diagram
