Product Details:
Place of Origin: Guangdong, China
Brand Name: Yanyue
Certification: CE, FCC
Model Number: MIS-B75-6L
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: According to Quantity
Payment Terms: T/T
Supply Ability: motherboard 100000 pieces / month ; IPC 5000 sets / month
Contact Now
Detailed Product Description
Name: Embedded Industrial PC Hard Disk Rack: One 2.5 Inch Hard Drive Rack
Adapt Motherboard: B75 6 Special Motherboard For Network Ports CPU/GPU: Intel Xeon E3-1245 V2
Memory: 8G DDR3 Hard Disk: 128G MSATA(optional Plus 1T Mechanical Hard Disk)
High Light:

industrial embedded computer

,

industrial pc case

,

6USB Embedded Industrial PC

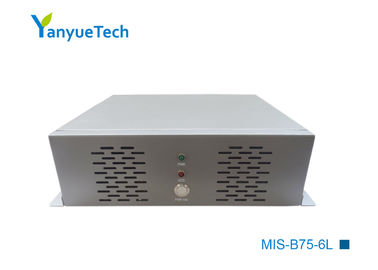

MIS-B75-6L 6 LANEmbedded Industrial Computer, 6 Intel Gigabit Network Ports, 2COM 6USB


Features:

Heat Dissipation, Dust Prevention and Seismic Resistance

■ 6 Intel Gigabit Ports

2 COM 6USB

B75 chip supports 2th,3th generation i3/i5/i7 CPU

Supporting Xeon E3-1245V2 CPU



Specification parameters Optional configuration
Chassis All-steel structure, powder-sprayed brown Optional industrial grey and other colors
Front POWER/HDD indicator, power button switch, 2 suction fans Customizable customer LOGO or other requirements

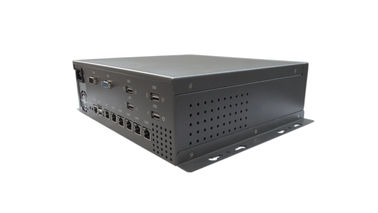

Back 6 RJ45 network port,1 RJ45 serial port,1 DB9 serial port,1 VGA, 6 USB
Hard disk rack one 2.5 inch hard drive rack Support MSATA and 2.5 inch dual hard disk
Adapt motherboard B75 6 special motherboard for network ports Customizable with Z87, H110 6 network port motherboard
CPU/GPU Intel Xeon E3-1245 V2 Supporting 2,3 generation i3/i5/i7 CPU
Memory 8G DDR3 Optional 2G/4G/16G memory
Hard disk 128G MSATA(optional plus 1T mechanical hard disk) Optional 32G/64G/256G Msata solid state hard disk; support 2.5 inch mechanical hard disk
Interface AC input; 6RJ45 network port; RJ45 + DB9 serial port; 1VGA; 6USB
Size No bracket:320mm * 311mm * 158mm Net/Gross Weight 3.5/4KG
Industrial Power Supply 200W Industrial 1U Power Supply
Installation mode Bracket installation
Work and Environment
Working temperature 0~60℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity, no condensation
    Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration



6LAN Embedded Industrial PC 6 Intel Gigabit Network Ports 2COM 6USB 06LAN Embedded Industrial PC 6 Intel Gigabit Network Ports 2COM 6USB 16LAN Embedded Industrial PC 6 Intel Gigabit Network Ports 2COM 6USB 26LAN Embedded Industrial PC 6 Intel Gigabit Network Ports 2COM 6USB 3





FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
