Product Details:
Place of Origin: Guangdong, China
Brand Name: Yanyue
Certification: CE, FCC
Model Number: MIS-ITX07
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: According to Quantity
Payment Terms: T/T
Supply Ability: motherboard 100000 pieces / month ; IPC 5000 sets / month
Contact Now
Detailed Product Description
Name: Embedded Industrial PC Hard Disk Rack: 1 2.5-inch Hard Disk Rack
Adapt Motherboard: Intel B75/H81/H110 Chip MINI-ITX Motherboard CPU/GPU: Intel I3 2120
Memory: 4G DDR3 Hard Disk: 128G MSATA
High Light:

Intel B75 Industrial Computer Case

,

128G MSATA Industrial Computer Case

,

1 PCI PCIE Embedded Computer Case

MIS-ITX07 Embedded industrial computer,1 PCI or PCIE extension,supporting i3/i5/i7 CPU,supporting multiple serial ports​



Features:

■ Heat Dissipation, Dust Prevention and Seismic Resistance

■ Support all Mini-ITX motherboards of Yanyue

■ Supporting a PCI or PCIEx16 extension

■ 9 additional antenna slots and 2 additional antenna slots can be introduced later.

■ Up to 12 serial ports and 14 USB

■ Dust-proof sponge can be replaced and cleaned without shutting down the machine



Specification parameters Optional configuration
Chassis All steel structure, powder-sprayed black Optional industrial grey and other colors

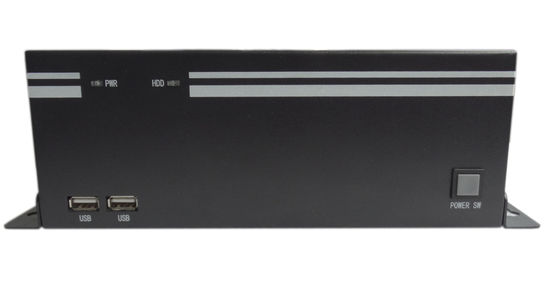

Front POWER/HDD Indicator Lamp, Power Button Switch,2USB2.0 Customizable customer LOGO or other requirements
Back Main board large square hole, 1 lateral expansion slot; 2 DB9, DC input can be customized for plug-in or Phoenix terminals
Side One suction fans can replace and clean dust-proof sponge without shutting down
Hard disk rack 1 2.5-inch Hard Disk Rack Support MSATA and 2.5-inch Dual Hard Disk
Adapt motherboard Intel B75/H81/H110 and other chips MINI-ITX motherboard Optional all ITX motherboard of Yanyue
CPU/GPU Intel i3 2120 Support 3, 4, 6, 7 generations desktop CPU or board CPU
Memory 4G DDR3 Optional 2G/8G/16G notebook memory
Hard disk 128G MSATA Optional 32G/64G/256G Msata solid-state hard disk; supports 2.5 inch hard disks with various capacities
Interface ACinput;6USB(2 USB3.0); 2RJ45(gigabit);2VGA;HDMI,audio output;MIC input;6COM(standard) Optional extraction of all interfaces on the chassis
Extension 1 PCI Extension Three, four, six and seven generations all support one PCIEx16 extension.
Size No bracket:225mm * 231mm * 85mm Net/Gross Weight 3.5/4KG
Industrial Power Supply 150W power board+12V@10A adapter
Installation mode Bracket installation
Work and Environment
Working temperature 0~60℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity, no condensation
    Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration
Installation Dimension Diagram  1 PCI PCIE 128G MSATA Intel B75 Industrial Computer Case MIS-ITX07 0



1 PCI PCIE 128G MSATA Intel B75 Industrial Computer Case MIS-ITX07 11 PCI PCIE 128G MSATA Intel B75 Industrial Computer Case MIS-ITX07 21 PCI PCIE 128G MSATA Intel B75 Industrial Computer Case MIS-ITX07 31 PCI PCIE 128G MSATA Intel B75 Industrial Computer Case MIS-ITX07 4
