FSB-945V2NA Intel 945GC Chip Full Size Motherboard 2 LAN 2 COM 6 USB

FSB-945V2NA Intel 945GC Chip Full Size Motherboard 2 LAN 2 COM 6 USB

  • FSB-945V2NA Intel 945GC Chip Full Size Motherboard 2 LAN 2 COM 6 USB
  • FSB-945V2NA Intel 945GC Chip Full Size Motherboard 2 LAN 2 COM 6 USB
FSB-945V2NA Intel 945GC Chip Full Size Motherboard 2 LAN 2 COM 6 USB
Product Details:
Place of Origin: Guangdong, China
Brand Name: Yanyue
Certification: CE, FCC
Model Number: FSB-945V2NA
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: According to Quantity
Payment Terms: T/T
Supply Ability: motherboard 100000 pieces / month ; IPC 5000 sets / month
Contact Now
Detailed Product Description
CPU/GPU: Support Intel® LGA775 Core™ 2 Duo/Pentium 4/D Processor (Socket LGA775) Chipset: Intel@ 945GC+ ICH7
Memory: 2 X DDR2 DIMM Sockets, Supporting Up To 2GB SDRAM Storage: 4×SATA , 1x IDE
Ethernet: 2 Gigabit LAN USB2.0: 6
LPT: 1 GPIO: 8bit
Graphics Interface: VGA Display: 945GC Integrated Graphics
PICMG: 1.0 Audio: Realtek ALC662, Supports 5.1 Channels
High Light:

2 LAN Full Size Motherboard

,

945GC Chip Full Size Motherboard

,

VGA Graphics Full Size Motherboard





FSB-945V2NA Full-size Motherboard, Intel@ 945GC Chip, 2LAN/2COM/6USB





Full-size Motherboard Feature



■ Support Intel® LGA775 Core™ 2 Duo/Pentium 4/D Processor

■ 2 Gigabit LAN



■ VGA Graphics Interface



■ 2COM RS232, COM2 Support RS485



■ 6USB2.0



■ 256 grade Watchdog Timer



■ PICMG 1.0





FSB-945V2NA Full-size Motherboard, Intel@ 945GC Chip, 2LAN/2COM/6USB



Full-size Motherboard Specification









PICMG 1.0
CPU/GPU

Support Intel® LGA775 Core™ 2 Duo/Pentium 4/D Processor

(Socket LGA775)

Chipset Intel@ 945GC+ ICH7
Memory 2 x DDR2 DIMM sockets, supporting up to 2GB SDRAM
Storage 4×SATA , 1x IDE
Audio Realtek ALC662, supports 5.1 channels
Ethernet 2 Gigabit LAN
Display 945GC integrated graphics
Graphics Interface VGA
USB2.0 6
LPT 1
COM 2COM RS232
Backplane I / O PS2 KB/MS, RJ45 LAN, USB2.0, VGA,
Board I / O Pin 5USB2.0 , 2COM , front audio , CLR_CMOS , CPU fan power , System fan power , Front panel , Print
Expand PICMG1.0( PCI, ISA)
System Support Windows(WINXP, WIN 7, WIN 10...), Linux
Full-size Motherboard Mechanical & Environmental
Power supply ATX Heat dissipation Fan Size(L×W) 338mm×122mm
Working temperature -15~55℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity,no condensation
Packing list FSB-9V2NA motherboard ×1, SATA Data wire ×1, COM wire x2, LPT wire x1, USB wire x2



FSB-945V2NA Full-size Motherboard, Intel@ 945GC Chip, 2LAN/2COM/6USB

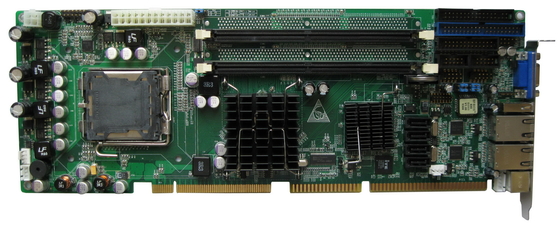

Full-size Motherboard Front View



FSB-945V2NA Intel 945GC Chip Full Size Motherboard 2 LAN 2 COM 6 USB 0





FSB-945V2NA Full-size Motherboard, Intel@ 945GC Chip, 2LAN/2COM/6USB



Full-size Motherboard Interface View



FSB-945V2NA Intel 945GC Chip Full Size Motherboard 2 LAN 2 COM 6 USB 1
