Shenzhen Yanyue Technology Co., Ltd
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | Yanyue |
| Certification: | CE, FCC |
| Model Number: | FSB-G41V2NA |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 100000 pieces / month ; IPC 5000 sets / month |
| PICMG: | 1.0 | CPU/GPU: | Support Intel® LGA775 Core™ 2 Quad/Core™ 2 Duo Processor (Socket LGA775) |
|---|---|---|---|
| Chipset: | Intel@ G41 + ICH7 | Memory: | 2 X DDR3 DIMM Sockets, Supporting Up To 4GB SDRAM |
| Storage: | 4×SATA, 1x IDE | Ethernet: | 2 Gigabit LAN |
| USB2.0: | 8 | LPT: | 1 |
| Graphics Interface: | VGA | Display: | G41 CHIP Integrated Graphics |
| High Light: | full size atx motherboard,industrial computer motherboard |
||

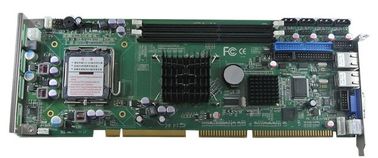

FSB-G41V2NA Full-size Motherboard, Intel@ G41 Chip, 2LAN/2COM/8USB
Feature
■ 2 Gigabit LAN
■ VGA Graphics Interface
■ 2COM RS232
■ 8USB2.0
■ 256 grade Watchdog Timer
■ PICMG 1.0
Specification
| PICMG | 1.0 | |||||
| CPU/GPU |
Support Intel® LGA775 Core™ 2 Quad/Core™ 2 Duo Processor (Socket LGA775) |
|||||
| Chipset | Intel@ G41 + ICH7 | |||||
| Memory | 2 x DDR3 DIMM sockets, supporting up to 4GB SDRAM | |||||
| Storage | 4×SATA, 1x IDE | |||||
| Audio | Realtek ALC662, supports 5.1 channels | |||||
| Ethernet | 2 Gigabit LAN | |||||
| Display | G41 CHIP integrated graphics | |||||
| Graphics Interface | VGA | |||||
| USB2.0 | 8 | |||||
| LPT | 1 | |||||
| COM | 2COM RS232 | |||||
| Backplane I / O | PS2 KB/MS, VGAI, RJ45 LAN | |||||
| Board I / O Pin | 8USB2.0 , 2COM , front audio , CLR_CMOS , CPU fan power , System fan power , Front panel , Print | |||||
| Expand | PICMG1.0( PCI, ISA) | |||||
| System | Support Windows(WINXP, WIN 7, WIN 10...), Linux | |||||
| Mechanical & Environmental | ||||||
| Power supply | ATX | Heat dissipation | Fan | Size(L×W) | 338mm×122mm | |
| Working temperature | -15~55℃ | Storage temperature | -40~75℃ | Environmental humidity | 0~90% air humidity,no condensation | |
| Packing list | FSB-G41V2NA motherboard ×1, SATA Data wire ×1, COM wire x2, LPT wire x1, USB wire x2 | |||||
Contact Person: Tommy
Tel: +86 18928431708
