Shenzhen Yanyue Technology Co., Ltd
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | Yanyue |
| Certification: | CE, FCC |
| Model Number: | ISA-2531CMD |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 100000 pieces / month ; IPC 5000 sets / month |
| CPU/GPU: | Soldered On Board VIA ESP4000 CPU (ESP6000 CPU Optional) | Chipset: | Intel@ G41 + ICH7 |
|---|---|---|---|
| Memory: | Soldered On Board 32M SDRAM(64M, 128M Optional) | Storage: | 1x 40P IDE; Soldered On Board 8M DOC Or 32M~256M DOM(Optional); FDD |
| Backplane I/O: | VGA, COM, PS/2 | Graphics Interface: | 1×VGA |
| Display: | CPU Integrated Graphics | PRINT: | Optional |
| COM: | 2COM RS232(Optional) | ||
| High Light: | ISA Half Size Motherboard,Soldered On Half Size Motherboard,8M DOC Half Size Motherboard |
||
ISA-2531CMD ISA Half-size Motherboard Soldered On board VIA ESP4000 CPU and 32M Memory and 8M DOC
ISA Half-size Motherboard Feature
■ Soldered On board VIA ESP4000 CPU
■ Soldered On board 32M/64m/128M Memory
■ Soldered On board 8M DOC
■ VGA Graphics Interface
■ 2COM RS232
■ ISA expend
ISA-2531CMD ISA Half-size Motherboard Soldered On board VIA ESP4000 CPU and 32M Memory and 8M DOC
ISA Half-size Motherboard Specification
| CPU/GPU | Soldered On board VIA ESP4000 CPU (ESP6000 CPU Optional) | |||||
| Memory | Soldered On board 32M SDRAM(64M, 128M optional) | |||||
| Storage | 1x 40P IDE; Soldered On board 8M DOC or 32M~256M DOM(Optional); FDD | |||||
| Display | CPU integrated graphics | |||||
| Graphics Interface | 1×VGA | |||||
| Optional | ||||||
| COM | 2COM RS232(Optional) | |||||
| Backplane I/O | VGA, COM, PS/2 | |||||
| Board I / O Pin | COM, CLR_CMOS , Front panel , Print, | |||||
| Expand | ISA, PC/104(optional) | |||||
| System | Support DOS, WIN98, Linux | |||||
| ISA Half-size Motherboard Mechanical & Environmental | ||||||
| Power supply | DC5V, 12V | Heat dissipation | Cooling fin | Size(L×W) | 185mm×122mm | |
| Working temperature | -15~55℃ | Storage temperature | -40~75℃ | Environmental humidity | 0~90% air humidity,no condensation | |
| Packing list | ISA-2531CMD board ×1, PS/2 wire x1 | |||||
ISA-2531CMD ISA Half-size Motherboard Soldered On board VIA ESP4000 CPU and 32M Memory and 8M DOC

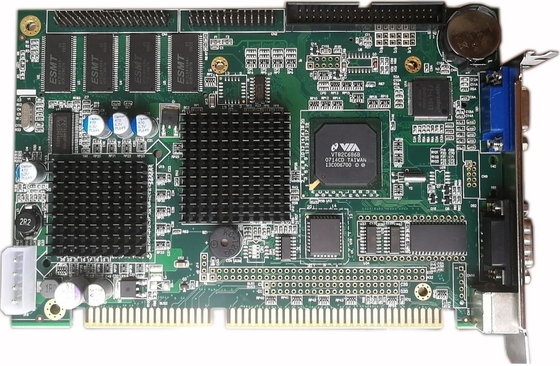

ISA Half-size Motherboard Front View
Contact Person: Hym
Tel: +8618928431708
