Shenzhen Yanyue Technology Co., Ltd
 |
| Place of Origin: | China |
| Brand Name: | Yanyue |
| Certification: | CE,FCC |
| Model Number: | ATX-B85AH36C |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 100000 pieces / month |
| Name: | Industrial ATX Motherboard | Graphics Interface:: | VGA,DVI |
|---|---|---|---|
| Audio:: | Realtek HD Audio | Display:: | CPU Integrated Graphics |
| GPIO:: | 8bit | Storage:: | 2×SATA,1×MSATA |
| High Light: | VGA DVI Industrial ATX Motherboard,7 Slot Industrial ATX Motherboard,PCH B85 CPU ATX Motherboard |
||
| CPU/GPU: | 4th Generation Intel® Core™ Processor I7/ I5/ I3, Pentium®/ Celeron® (Socket LGA1150) | Chipset: | Intel@ PCH B85 |
|---|---|---|---|
| Memory: | 2x DDR3 DIMM Sockets, Supporting Up To 16GB SDRAM | Storage: |
2×SATA,1×MSATA |
| Ethernet: | 3 Gigabit LAN | USB2.0: | |
| USB3.0: | 4 | GPIO: | 8bit |
| Graphics Interface: | VGA,DVI | Display: | CPU Integrated Graphics |
| Audio: | Realtek HD Audio | ||
| High Light: |
intel motherboard,energy efficient motherboard |
||

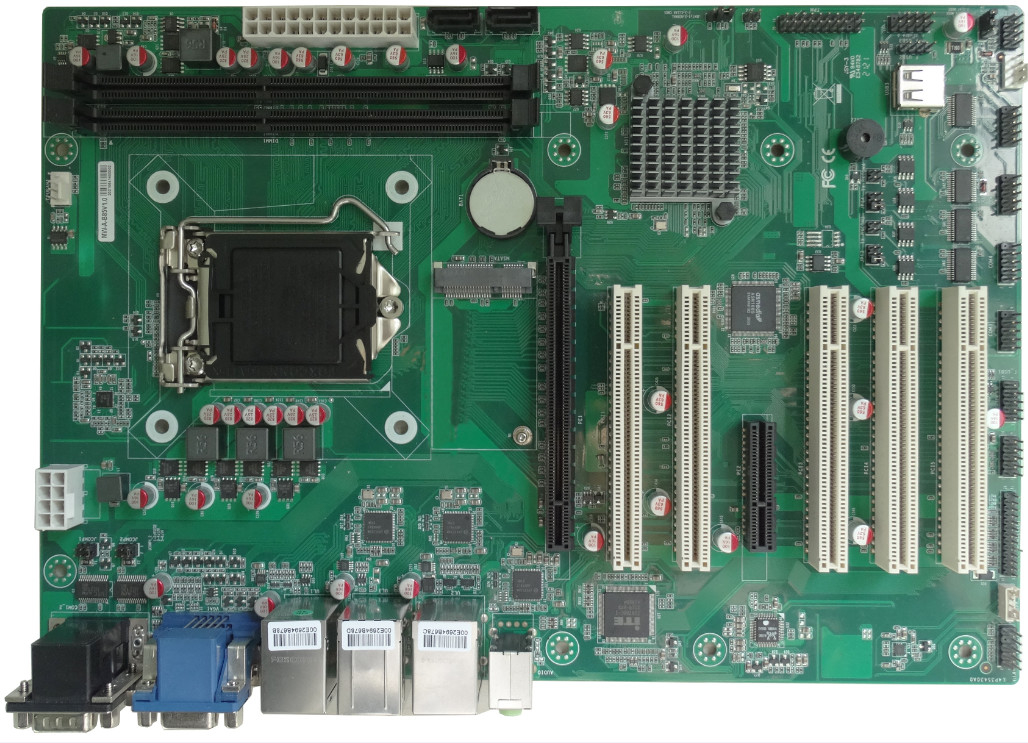

ATX-B85AH36C ATX Motherboard, Intel@ PCH B85 Chip, 3LAN/6COM/12USB, 7Slot(5PCI)
Feature
■ 3 Intel Gigabit LAN
■ VGA, HDMII Graphics Interface
■6 COM RS232
■ 8USB2.0(1 Vertical USB), 4USB3.0
■ 256 grade Watchdog Timer
■ 8 bit GPIO(4 In, 4 Out)
■ 1PCIEx16; 1PCIEx4;5PCI expand
Specification
| Specification | ||||||
| CPU/GPU |
4th Generation Intel® Core™ Processor i7/ i5/ i3, Pentium®/ Celeron® (Socket LGA1150) |
|||||
| Chipset | Intel@ PCH B85 | |||||
| Memory | 2x DDR4 DIMM sockets, supporting up to 16GB SDRAM | |||||
| Storage | 2×SATA,1×MSATA | |||||
| Audio | Realtek HD Audio | |||||
| Ethernet | 2 Intel Gigabit LAN | |||||
| Display | CPU integrated graphics | |||||
| Graphics Interface | VGA, DVI | |||||
| USB2.0 | 8,(1 Vertical USB) | |||||
| USB3.0 | 4 | |||||
| GPIO | 8bit | |||||
| COM | 6COM RS232 | |||||
| Backplane I / O |
2DB9 COM, PS/2, VGA+HDMI,3 RJ45 LAN+4USB3.0+2USB2.0, Line-out/in+Mic-in |
|||||
| Board I / O Pin |
5USB2.0 , 1Vertical USB, 4COM , front audio , CLR_CMOS , CPU fan power , System fan power , GPIO, Front panel , 24P+4P ATX, Print |
|||||
| Expand | 1PCIEx16; 1PCIEx4;5PCI | |||||
| System | Support Windows(WIN 10...), Linux | |||||
| Mechanical & Environmental | ||||||
| Power supply | ATX | Heat dissipation | Fan | Size(L×W) | 305mm×244mm | |
| Working temperature | -15~55℃ | Storage temperature | -40~75℃ | Environmental humidity | 0~90% air humidity,no condensation | |
| Packing list |
ATX-B85AH36C motherboard ×1, SATA Data wire ×1, Interface board×1, COM wire x2 |
|||||
