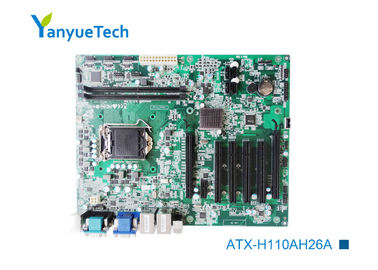

ATX-H110AH26A Industrial ATX Motherboard / ATX Motherboard Intel@ PCH H110 Chip 2 LAN 6 COM 10 USB 7 Slot 4 PCI

ATX-H110AH26A Industrial ATX Motherboard / ATX Motherboard Intel@ PCH H110 Chip 2 LAN 6 COM 10 USB 7 Slot 4 PCI

  • ATX-H110AH26A Industrial ATX Motherboard / ATX Motherboard Intel@ PCH H110 Chip 2 LAN 6 COM 10 USB 7 Slot 4 PCI
  • ATX-H110AH26A Industrial ATX Motherboard / ATX Motherboard Intel@ PCH H110 Chip 2 LAN 6 COM 10 USB 7 Slot 4 PCI
  • ATX-H110AH26A Industrial ATX Motherboard / ATX Motherboard Intel@ PCH H110 Chip 2 LAN 6 COM 10 USB 7 Slot 4 PCI
ATX-H110AH26A Industrial ATX Motherboard / ATX Motherboard Intel@ PCH H110 Chip 2 LAN 6 COM 10 USB 7 Slot 4 PCI
Product Details:
Place of Origin: Guangdong, China
Brand Name: Yanyue
Certification: CE, FCC
Model Number: ATX-H110AH26A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: According to Quantity
Payment Terms: T/T
Supply Ability: motherboard 100000 pieces / month ; IPC 5000 sets / month
Contact Now
Detailed Product Description
CPU/GPU: 6th/7th Generation Intel® Core™ Processor I7/ I5/ I3, Pentium®/ Celeron® (Socket LGA1151) Chipset: Intel@ PCH H110
Memory: 2x DDR4 DIMM Sockets, Supporting Up To 32GB SDRAM Storage: 4×SATA
Ethernet: 2 Intel Gigabit LAN USB2.0: 6
USB3.0: 4 GPIO: 8bit(4In, 4Out)
Graphics Interface: VGA, DVI, HDMI COM: 6COM RS232(COM1 Support RS422/485)
High Light:

intel motherboard

,

intel chip





ATX-H110AH26A ATX Motherboard, Intel@ PCH B85 Chip, 2LAN/6COM/12USB, 7Slot(4PCI)





Feature

■ Support LGA1151 socket for 6th/7th Gen. Intel® CoreProcessor

■ 2 Intel Gigabit LAN



■ VGA, DVI, HDMI Graphics Interface



■ 6COM RS232 , COM1 Support RS422/485



■ 6USB2.0, 4USB3.0



■ 8 bit GPIO



■ 2PCIEx16(1 x4 signal); 1PCIEx1; 4PCI expand



■ 256 grade Watchdog Timer







Specification









CPU/GPU

6th/7th Generation Intel® Core™ Processor i7/ i5/ i3, Pentium®/ Celeron®

(Socket LGA1151)

Chipset Intel@ PCH H110
Memory 2x DDR4 DIMM sockets, supporting up to 32GB SDRAM
Storage 4×SATA
Audio Realtek ALC662, supports 5.1 channels
Ethernet 2 Intel Gigabit LAN
Display CPU integrated graphics
Graphics Interface VGA, DVI, HDMI
USB2.0 6
USB3.0 4
GPIO 8bit
COM 6COM RS232(COM1 support RS422/485)
Backplane I / O PS2+2USB2.0, COM+HDMII,VGA+DVI, 2 RJ45 LAN+4USB3.0, Line-out+Mic-in
Board I / O Pin 4USB2.0 , 5COM , front audio , CLR_CMOS , CPU fan power , System fan power , GPIO, Front panel , 24P+4P ATX, Print
Expand 2PCIEx16( 1 x4signal); 1PCIEx1; 4PCI
System Support Windows(WIN 7, WIN 10...), Linux
Mechanical & Environmental
Power supply ATX Heat dissipation Fan Size(L×W) 305mm×244mm
Working temperature -15~55℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity,no condensation
Packing list ATX-H110AH26A motherboard ×1, SATA Data wire ×1, Interface board×1, COM wire x2
