|Place of Origin:||Guangdong, China|
|Minimum Order Quantity:||Negotiation|
|Delivery Time:||According to Quantity|
|Supply Ability:||motherboard 100000 pieces / month ; IPC 5000 sets / month|
|Name:||Fanless Box PC||GPIO:||8 Bit|
|LAN:||2~4 Intel Giga LAN||CPU/GPU:||Intel 4th I3 I5 I7 U Series CPU|
|Memory:||4G DDR3||Hard Disk:||Flexible Configuration|
VGA HDMI Fanless Box PC,
4 LAN Fanless Box PC,
MSATA Embedded Industrial PC
MIS-H4U All-aluminium fan-free embedded IPC, board-pasted 4th generation i3/i5/i7 U series CPU, 2~4 network
■ All-aluminium toothed fanless design, fully sealed
■ supporting 4th i3 i5 i7 U-series CPU
■ 2~4 Intel Giga LAN, 6 COM, 2~6 USB
■ Support MSATA SSD
■ Supporting VGA+HDMI Independent Double Display
■ Flexible configuration to support WIFI or 4G
■Support 4 into 4 out of isolation 8 Bit GPIO
|Specification parameters||Optional configuration|
|Chassis||All-aluminium toothed chassis, sandblasting oxidation black||Other colours can be customized|

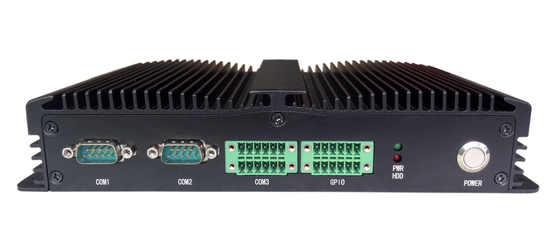

|Front||Switch with power indicator; 2COM(DB9),4COM; 4USB2.0 (6th generation 2USB2.0)||Customizable LOGO|
|Back||DC 12V input; VGA + HDMI display; 2~4USB; 2~4RJ45 gigabit network port Line out + MIC in; 2 antenna aperture (support WIFI or 4G)||Optional antenna bits for 4G or WiFi;2~4RJ45 can be selected; 4RJ45(only 2 USB)|
|Hard disk rack||1 hard disk rack, supporting 1 2.5 inch hard disk||Optional Hard Disk Rack|
|Adapt motherboard||motherboard for Intel 4th U-series CPUs in Yanyue|
|CPU/GPU||Intel i5 4300U||Optional Board Paste Intel 4th or 5th and Generation i3/i5/i7 U CPU Series|
|Memory||4G DDR3||Optional 8G notebook memory|
|Hard disk||128G MSATA||Optional 32G/64G/256G/512G/1T Msata solid state hard disk;|
|Industrial Power Supply||Standardized 12V@5A adaptor||Optional adaptor|
|Installation mode||Bracket installation|
|Work and Environment|
|Working temperature||0～60℃||Storage temperature||-40～75℃||Environmental humidity||0~90% air humidity, no condensation|
|Vibration||5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration|
|EMC||GB9254-2008 class A||Shock||10g acceleration, 11ms duration|
|Installation Dimension Diagram|
1. As a professional manufacturer/ OEM Factory and supplier of mini pc/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2. Our products are 100% original and have strict QC inspection before shipment.
3. Professional and efficient sales team to serve for you diligently.
4. Sample order is welcomed and will be delivered within 1-3 days.
6. We support Trade Assurance to ensure On-time shipment and product quality.
7. We provide OEM/ODM service according to your requirements.
8. We provide 2 years maintenance warranty for our products.
1. Do you provide OEM/ODM service?
A: Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
2. What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
3. What payment method do you use?
A: T/T,Western Union
4. What is the lead time of your product?
A: 3 days for sample, 7~15 working days for large quantity.
