Shenzhen Yanyue Technology Co., Ltd
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | Yanyue |
| Certification: | CE, FCC |
| Model Number: | MIS-J1900 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 100000 pieces / month ; IPC 5000 sets / month |
| Name: | Embedded Industrial PC | Hard Disk Rack: | None |
|---|---|---|---|
| Adapt Motherboard: | Special Board Sticks 3855U Or J1900 Motherboard | CPU/GPU: | Intel J1900 |
| Memory: | 4G DDR4 | Hard Disk: | 64G MSATA |
| High Light: | fanless embedded box pc,fanless industrial computer |
||

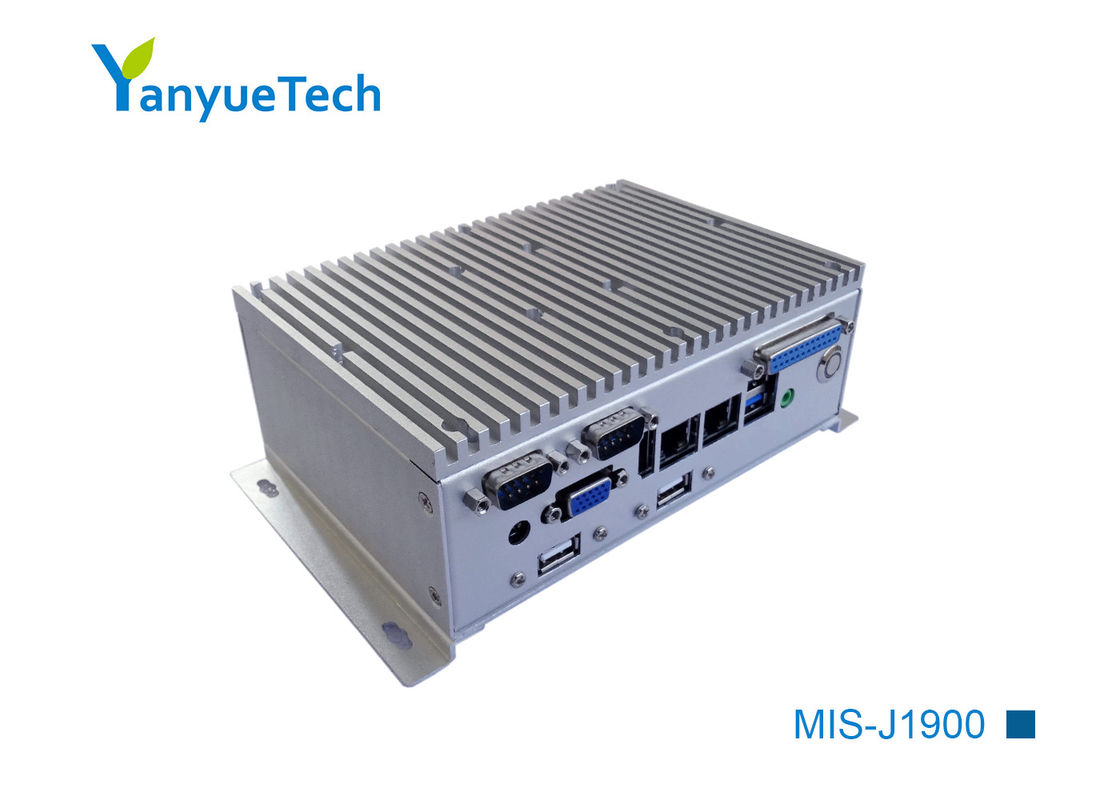

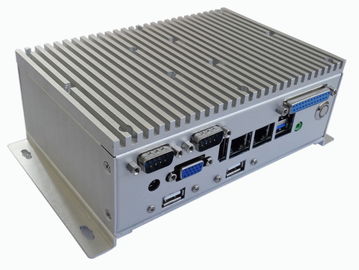

MIS-J1900 All-aluminium Fan-free Embedded Industrial Computer, Board-pasted J1900 CPU, Dual-network 2 Series 4 USB
Features:
■ Small size toothed fan-free design, fully sealed
■ Intel J1900 CPU
■ Double Network 2 Series 1 Parallel 4 USB
■ Supporting VGA+HDMI Independent Double Display
| Specification parameters | Optional configuration | |||||||
| Chassis | All-aluminium toothed chassis, sandblasting oxidation black | Other colours can be customized | ||||||

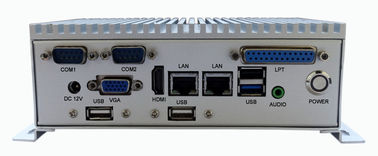

| Front | DC 12V; VGA + HDMI display; 4USB; 2RJ45 Gigabit Network port; Line out; 2COM; 1LPT; power switch with lamp | Other interfaces can be customized | ||||||
| Back | None | Customizable LOGO or other interfaces | ||||||
| Hard disk rack | None | |||||||
| Adapt motherboard | Special board sticks 3855U or J1900 motherboard | |||||||
| CPU/GPU | Intel j1900 | |||||||
| Memory | 4G DDR3 | Optional 2G/8G notebook memory | ||||||
| Hard disk | 64G MSATA | Optional 32G/128G/256G Msata Msata solid state hard disk; | ||||||
| Size | No bracket:151*107*53.5mm | Net/Gross Weight | 1.5/2KG | |||||
| Industrial Power Supply | Standardized 12V@5A adapter | |||||||
| Installation mode | Bracket installation | |||||||
| Work and Environment | ||||||||
| Working temperature | 0～60℃ | Storage temperature | -40～75℃ | Environmental humidity | 0~90% air humidity, no condensation | |||
| Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration | |||||||
| EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration | |||||
