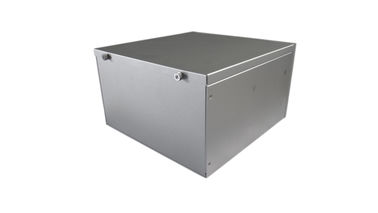

MIS-J1900E Fanless Box PC / Fanless Embedded System J1900 CPU 1 PCIE Extension

MIS-J1900E Fanless Box PC / Fanless Embedded System J1900 CPU 1 PCIE Extension

  • MIS-J1900E Fanless Box PC / Fanless Embedded System J1900 CPU 1 PCIE Extension
  • MIS-J1900E Fanless Box PC / Fanless Embedded System J1900 CPU 1 PCIE Extension
  • MIS-J1900E Fanless Box PC / Fanless Embedded System J1900 CPU 1 PCIE Extension
  • MIS-J1900E Fanless Box PC / Fanless Embedded System J1900 CPU 1 PCIE Extension
  • MIS-J1900E Fanless Box PC / Fanless Embedded System J1900 CPU 1 PCIE Extension
  • MIS-J1900E Fanless Box PC / Fanless Embedded System J1900 CPU 1 PCIE Extension
MIS-J1900E Fanless Box PC / Fanless Embedded System J1900 CPU 1 PCIE Extension
Product Details:
Place of Origin: Guangdong, China
Brand Name: Yanyue
Certification: CE, FCC
Model Number: MIS-J1900E
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: According to Quantity
Payment Terms: T/T
Supply Ability: motherboard 100000 pieces / month ; IPC 5000 sets / month
Contact Now
Detailed Product Description
Name: Embedded Industrial PC Hard Disk Rack: None
Adapt Motherboard: Special Board Sticks 3855U Or J1900 Motherboard CPU/GPU: Intel J1900
Memory: 4G DDR4 Hard Disk: 64G MSATA
High Light:

fanless embedded system

,

fanless embedded box pc

MIS-J1900E All-aluminium Fan-free Embedded IPC, J1900 CPU, 1 PCIE Extension, Dual-network 6 Series 6 USB



Features:

All-aluminium fan-free design

■Two slots, one PCIEx4 extension

8 GPIO

Board pasted Intel J1900 CPU

Double Intel Gigabit Port, 6 Series 6USB

Supporting VGA+HDMI Independent Double Display



Specification parameters Optional configuration
Chassis All-aluminium toothed chassis, sandblasting and oxidation Other colours can be customized
Front Power/HDD Indicator
Back DC 12V; VGA + HDMI display; 6USB; 2RJ45 Gigabit Network port; Line out; 6COM; GPIO; power switch; 2 slots Customizable LOGO or other interfaces
Hard disk rack 1 2.5 inch hard drive rack
Adapt motherboard Private board sticking J1900 motherboard
CPU/GPU Intel j1900
Memory 4G DDR3 Optional 2G/8G notebook memory
Hard disk 64G MSATA Optional 32G/128G/256G Msata solid state hard disk; support 2.5 inch solid state hard disk and mechanical hard disk
Extension Two slots, one PCIEx4 extension (PCIEx1 signal)
Size No bracket:151*107*53.5mm Net/Gross Weight 2.5/3KG
Industrial Power Supply Standardized 12V@5A adapter
Installation mode Bracket installation
Work and Environment
Working temperature 0~60℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity, no condensation
    Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration



MIS-J1900E Fanless Box PC / Fanless Embedded System J1900 CPU 1 PCIE Extension 0MIS-J1900E Fanless Box PC / Fanless Embedded System J1900 CPU 1 PCIE Extension 1MIS-J1900E Fanless Box PC / Fanless Embedded System J1900 CPU 1 PCIE Extension 2MIS-J1900E Fanless Box PC / Fanless Embedded System J1900 CPU 1 PCIE Extension 3
