Place of Origin: | Guangdong, China |
Brand Name: | Yanyue |
Certification: | CE, FCC |
Model Number: | MIS-8105 |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden Box |
Delivery Time: | According to Quantity |
Payment Terms: | T/T |
Supply Ability: | motherboard 100000 pieces / month ; IPC 5000 sets / month |

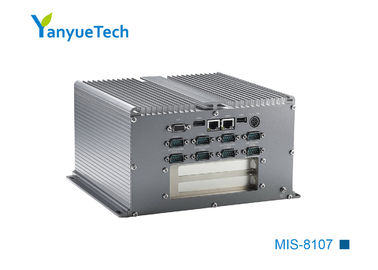

Name: | Embedded Industrial PC | Hard Disk Rack: | 1 Hard Disk Rack, Supporting 1 2.5 Inch Hard Disk |
---|---|---|---|
Adapt Motherboard: | Dedicated Motherboard | CPU/GPU: | Intel 1037U |
Memory: | 4G DDR3 | Hard Disk: | 64G MSATA |
High Light: | fanless embedded box pc,fanless industrial computer |
Features:
■ All-aluminium toothed fan-free design, fully sealed
■ Modular Wireless Material Design
■ Plate paste 1037U CPU
■ Dual Network 10 Series 6 USB, 2 PCI Extension
■ Support MSATA + 2.5 inch dual hard disk
■ Supporting VGA+HDMI Independent Double Display
Specification parameters | Optional configuration | |||||||
Chassis | All-aluminium toothed chassis, sandblasted titanium oxide ash | Other colours can be customized | ||||||
Front | Power switch; Power/HDD/LAN1/LAN 2 indicator; Mic in+Line out; PS/2; 2COM RS232; 5USB2.0 | |||||||
Back | DC12-24V input; VGA+HDMI display; 1USB; 2RJ45 Gigabit Network port; 5RS232/422/485+1RS232/485+2RS232 serial port; 2 PCI extensions | |||||||
Hard disk rack | 1 hard disk rack, supporting 1 2.5 inch hard disk | |||||||
Adapt motherboard | Dedicated motherboard | |||||||
CPU/GPU | Intel 1037U | |||||||
Memory | 4G DDR3 | Optional 8G DDR3 notebook memory | ||||||
Hard disk | 64G MSATA | Optional 32G/128G/256G Msata solid state hard disk; support 2.5 inch solid state hard disk and mechanical hard disk | ||||||
Size | 246*209*132mm | Net/Gross Weight | 3.5/4KG | |||||
Industrial Power Supply | Standardized 12V@5A adapter | |||||||
Installation mode | Bracket installation | |||||||
Work and Environment | ||||||||
Working temperature | 0~60℃ | Storage temperature | -40~75℃ | Environmental humidity | 0~90% air humidity, no condensation | |||
Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration | |||||||
EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration | |||||
Installation Dimension Diagram |
