Shenzhen Yanyue Technology Co., Ltd
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | Yanyue |
| Certification: | CE, FCC |
| Model Number: | ITX-J6412DL268 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 100000 pieces / month ; IPC 5000 sets / month |
| CPU/GPU: | Soldered Onboard Intel® J6412 CPU | Memory: | 1 X DDR4 SO-DIMM Sockets, Supporting Up To 16GB SDRAM |
|---|---|---|---|
| Storage: | 1×SATA ，1×M.2 | Ethernet: | 2 Gigabit LAN |
| USB2.0: | 4 | USB3.0: | 4 |
| GPIO: | 16bits(8 Bits In, 8 Bits Out) | COM: | 6COM RS232,2COM Can Be Set To RS422/RS485 |
| High Light: | EDP Mini ITX Thin Motherboard,J6412 CPU Mini ITX Thin Motherboard,LVDS Thin Mini ITX Motherboard |
||
Intel J6412CPU Mini ITX Thin Motherboard 2LAN 6COM 8USB
ITX Motherboard Feature
■ Soldered on board Intel IOTG Elkhart Lake J6412 CPU
■ 2LAN Realtek8111 Gigabit network card
■ VGA,HDMI,LVDS or EDP Tri-Display
■ 6COM, 4USB2.0, 4USB3.2
■ LPT or 16bits GPIO
■ SIM Socket
■ Support Watchdog
■ 1 M.2 Key B; 1 M.2 Key E
■ ITX Thin motherboard,DC12Vpower supply
ITX Motherboard Specification
| CPU/GPU | Soldered Onboard Intel® J6412 CPU | ||||||
| Memory | 1 x DDR4 SO-DIMM sockets, supporting up to 16GB SDRAM | ||||||
| Storage | 1×SATA ,1×M.2 | ||||||
| Audio | Realtek ALC629, Built-in amplifier output 2.2W@4Ω | ||||||
| Ethernet | 2 Gigabit LAN | ||||||
| Display | CPU integrated graphics | ||||||
| Graphics Interface | 1×VGA, 1×HDMI；1× LVDS or EDP optional,support Tri-Display | ||||||
| USB2.0 | 4 | ||||||
| USB3.2 | 4 | ||||||
| GPIO | 16bits(8 bits In, 8 bits Out) | ||||||
| COM | 6COM RS232,2COM can be set to RS422/RS485 | ||||||
| Backplane I / O | DC in, HDMI, VGA, 2 USB3.2, 2 RJ45 LAN, Line-out+Mic-in | ||||||
| Board I / O Pin |
4USB2.0, 2USB3.2, 6 COM, front audio, CPU fan power, System fan power, LPT |
||||||
| Expand | 1 M.2 Key B support SATA SSD/4G/5G; 1 M.2 Key E support WIFI/Bluetooth | ||||||
| System | Support Windows(WIN 7, WIN 10...), Linux | ||||||
| ITX Motherboard Mechanical & Environmental | |||||||
| Power supply | DC 12V | Heat dissipation | Fan | Size(L×W) | 170mm×170mm | ||
| Working temperature | -15~55℃ | Storage temperature | -40~75℃ | Environmental humidity | 0~90% air humidity,no condensation | ||
| Packing list | ITX-J6412DL268motherboard ×1, SATA Data cable ×1, SATA power cable ×1 | ||||||
| ITX Motherboard Order Information | |||||||
| ITX-J6412DL268 | 2LAN, 6 RS232 serial, 8USB | ||||||
| ITX-J6412DL12A | 1LAN, 2 RS232 serial, 10USB | ||||||

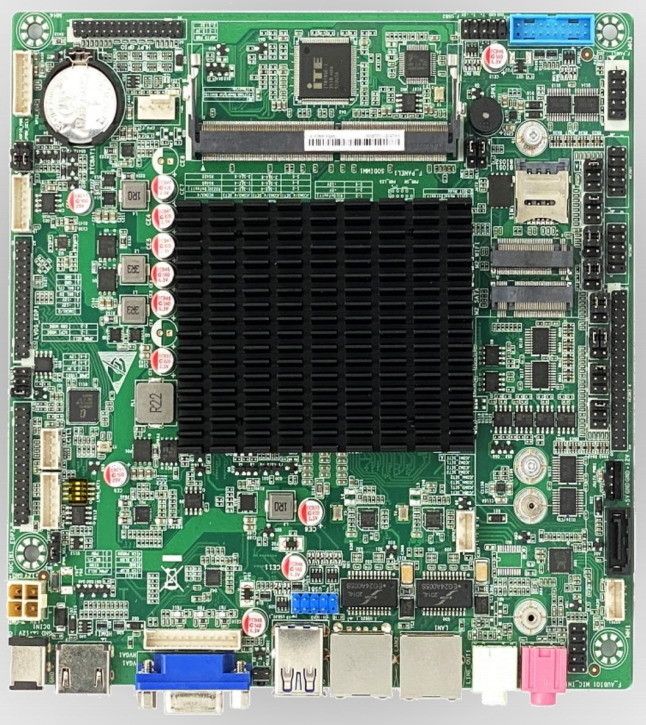

ITX Motherboard Front View

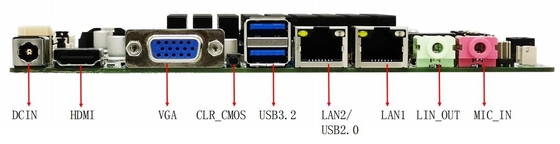

ITX Motherboard Interface View
