15 Inch Fanless Panel PC Support 3rd 4th 6th 7th 8th 10th Gen U Series CPU

Fanless Panel PC Features:

■ Ultra-low power consumption, fanless design
■ Brushed aluminum panel, panel IP64 waterproof rating
■ Flexible configuration of memory / hard disk, optional wide voltage input
■ A variety of board stickers I3 / I5 / I7 U series CPU motherboard to choose from
■ Standard 2LAN 4COM 6USB, other interfaces can be OEM
■ Support mSATA SSD and 2.5-inch HDD / SSD installed at the same time
■ Resistive touch screen





Fanless Panel PC Specification							Fanless Panel PC Optional configuration
Front panel	Aluminium panel, brushed oxidised natural color						Optional black and sandblasted
Back chassis	1.2mm steel plate, silver, sandblasted fins in natural colour						Optional industrial black
Adapt motherboard	low power ITX motherboards						All low power ITX motherboards of Yanyue are optional
LCD screen	15" TFT, LED backlight; Resolution 1024*768; Dot matrix: 0.297*297; Max. colour: 16.2M; Brightness: 300cd/㎡; Contrast ratio: 1500:1; Response time: 35ms; MTBF: 50,000h Viewing angle: (+85° ~ -85°) (+85° ~ -85 °).
Touch screen	5-wire resistive screen						Customizable Capacitance Screen
CPU/GPU	Intel i5 3317U						Option Intel J1900, J4125, 3rd 4th 6th 7th 8th 10th gen I3/I5/I7 U series CPU
Memory	4G DDR3						Optional 2G/8G/16G DDR3 notebook memory
Hard disk	128G MSATA						Optional 64G/128G/256G up to 1T SSD;Optional MSATA or M.2 + 2.5" daul Hard Disk
Interface	DC12V；4USB； 2RJ45(Gigabite)；VGA；HDMI;Audio output；MIC input, DC Phoenix terminal；4COM						Customisable interfaces
Size	380mm (length)* 300mm (width)* 70mm (thickness)						Weight	6/6.5KG
Industrial Power Supply	12V@5A adapter						Optional DC9V~36V wide voltage input
Installation mode	Embedded screw installation; Embedded hook installation; VISA wall mounting installation
Fanless Panel PC Work and Environment
Working temperature	0～60℃		Storage temperature		-40～75℃		Environmental humidity	0~90% air humidity, no condensation
IP Level	Panel IP65		Vibration		5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC	GB9254-2008 class A				Shock		10g acceleration, 11ms duration
Fanless Panel PC Installation Dimension Diagram



Fanless Panel PC Front View

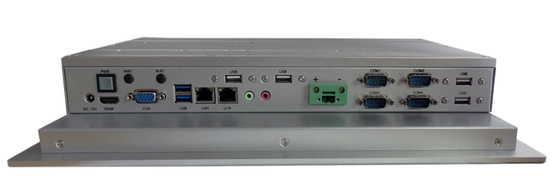

Fanless Panel PC Interface Diagram

Fanless Panel PC Side View



Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of mini pc/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.

FAQ:
1. Do you provide OEM/ODM service?
A: Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.

2. What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.

3. What payment method do you use?
A: T/T

4. What is the lead time of your product?
A: 3 days for sample, 7~15 working days for large quantity.
