Place of Origin: | Guangdong, China |
Brand Name: | Yanyue |
Certification: | CE, FCC |
Model Number: | IPC-8402 |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Carton |
Delivery Time: | According to Quantity |
Payment Terms: | T/T |
Supply Ability: | motherboard 100000 pieces / month ; IPC 5000 sets / month |
Name: | Industrial Rackmount PC | Adapt Motherboard: | All ATX Powered Mini Itx Motherboards Of Yanyue |
---|---|---|---|
CPU/GPU: | Intel I3 2120 Dual Core 4-thread 3.3G Hz | Memory: | 4G DDR3 |
Hard Disk: | 500G Mechanical Hard Disk | Installation Mode: | 19 Inch Rack |
High Light: | 4U Industrial Rackmount PC,3.3G Hz Industrial Rackmount PC,4U industrial rackmount computer |

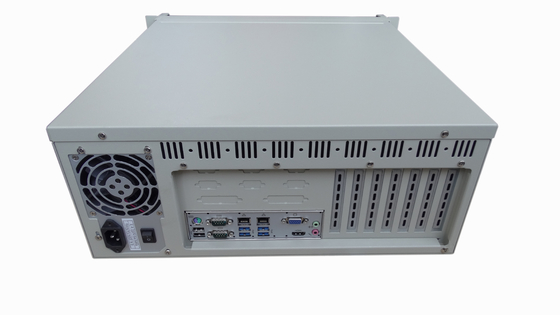

19 Inch 4U Industrial Rackmount PC 3.3G Hz I3 I5 I7 CPU IPC-8402
Features:
■ Heat dissipation, dust and vibration resistance
■ Each voltage indicator on the front
■ Support all ATX/ Micro-ATX motherboards in Yanyue
■ 7-slot expand
■ 6COM and 2LPT can be added at the back
■ Can be replaced and cleaned without shutting down the machine
■ Flexible configuration, flexible configuration of CPU, memory, hard disk according to customer requirements
Specification parameter | Optional configuration | |||||||
Chassis | All steel structure, color industrial grey | Optional black | ||||||
Front | Inside the door: power switch, 2usb2.0; power / HDD indicator; 3.3v/5v/12v/+5VSB/-5V/-12V voltage indicator; 1 large fan, which can be replaced and cleaned without shutdown | |||||||
Back | PS / 2 power supply; large hole of main board; 7 expansion slot; additional 6 DB9; 2 DB25 | 14 slots, support full-length card motherboard, support 12 PCI extensions | ||||||
Hard disk rack | Two 5.25 "+ two 3.5" seismic hard disk racks | Optional optical drive, supporting 4 hard disks | ||||||
Adapter motherboard | All ATX and micro ATX motherboards of Yanyue | All full length card motherboards of Yanyue | ||||||
CPU/GPU | Intel i3 2120 dual core 4-thread 3.3G Hz | Support all generations of Celeron, Pentium, I3, i5, i7 series CPUs | ||||||
Memory | 4G DDR3 | Optional 2G/8g/16g/32g memory | ||||||
Hard disk | 500G mechanical hard disk | Optional 32g/64g/256g/512g/1t solid state drive; support 3.5-inch mechanical hard disk | ||||||
Interface | AC input; PS / 2 kb / MS; 4USB; 2rj45 (Gigabit); VGA; DVI, audio output; MIC input; 6com (standard) | All interfaces on the outgoing chassis can be selected. | ||||||
Extend | PCIEx16; PCIEx4; PCIEx1; 4PCI | Depending on the expansion slot on the system board | ||||||
Size | Excluding handle:483*450*177 | Net/gross weight | 9/10KG | |||||
Industrial power supply | 300W PS/2 Industrial Power | Other higher power options | ||||||
Installation mode | 19 inch rack | |||||||
Work and Environment | ||||||||
Working temperature | 0~60℃ | Storage temperature | -40~75℃ | Environmental humidity | 0~90% air humidity, no condensation | |||
Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration | |||||||
EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration | |||||
Installation Dimension Diagram |
FAQ:
1. Do you provide OEM/ODM service?
A: Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
2. What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
3. What payment method do you use?
A: T/T,Western Union
4. What is the lead time of your product?
A: 3 days for sample, 7~15 working days for large quantity.
