Shenzhen Yanyue Technology Co., Ltd
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | Yanyue |
| Certification: | CE, FCC |
| Model Number: | TPC-1201T |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 100000 pieces / month ; IPC 5000 sets / month |
| Name: | Industrial Touch Panel PC | Adapt Motherboard: | Low Power ITX Motherboard |
|---|---|---|---|
| Touch Screen: | 5-wire Resistance Screen | CPU/GPU: | Intel J1900 |
| Memory: | 4G DDR3 | Hard Disk: | 64G MSATA |
| High Light: | 12.1" Industrial Touch Panel PC,Intel J1900 Industrial Touch Panel PC,64G MSATA Embedded Touch PC |
||
TPC-1201T 12.1" Touch Industrial Panel PC with I3/I5/I7 U Series CPU Motherboard for Selection
Features:
■ Ultra-low power, thin design
■ Economical Steel Plate Panel
■ Installation of VISA
■ Resistance Touch Screen
■ Multiple CPU motherboards of I3/I5/I7 U series for selection
■ Standard 2 Series 6 USB for single network, optional 2 Series 4 USB for double network
| Specification parameters | Optional configuration | |||||||
| Front panel | 1.2mm steel plate, black | Optional silver or other colours | ||||||
| Back chassis | 1.2mm steel plate, black | Optional silver or other colours | ||||||
| Adapt motherboard | Low power ITX motherboard | Optional all low power ITX motherboards of Yanyue | ||||||
| LCD screen | 12.1"TFT, LED backlight; resolution 800*600 (optional 1024*768); lattice: 0.297*0.297; maximum color: 16.7M; brightness: 350cd/; contrast: 800:1; response speed: 16ms; MTBF: 50,000h visual angle: (+80 -80)(+80 -80); | |||||||
| Touch screen | 5-wire resistance screen | Customizable Capacitance Screen | ||||||
| CPU/GPU | Intel J1900 | Optional 3th, 4th, 6th and 7th Generation U Series CPUs | ||||||
| Memory | 4G DDR3 | Optional 2G/8G/16G DDR3 notebook memory | ||||||
| Hard disk | 64G MSATA | Optional 32G/64G/256G Msata solid state hard disk; 2.5 "500G/1T/2T mechanical hard disk and 512G/1T solid state hard disk | ||||||

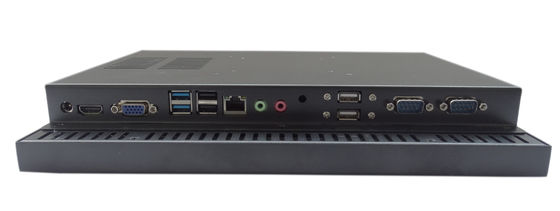

| Interface | DC12V; 6USB; RJ45 (gigabit); VGA; HDMI, audio output; MIC input; antenna aperture; 2COM | Optional 8USB or 6COM or 1LPT; plug-in location can be customized Phoenix terminal, can customize wide-voltage input | ||||||
| Size | 312mm (length)* 240mm (width)* 47mm (thickness) | Weight | 4/5KG | |||||
| Industrial Power Supply | 12V@5A adapter, Taiwan Qiaowei Brand | Optional non-configuration | ||||||
| Installation mode | Embedded screw installation; Embedded hook installation; VISA wall mounting installation | |||||||
| Work and Environment | ||||||||
| Working temperature | 0～60℃ | Storage temperature | -40～75℃ | Environmental humidity | 0~90% air humidity, no condensation | |||
| IP Level | Panel IP62 | Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration | |||||
| EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration | |||||
| Installation Dimension Diagram |  |
|||||||
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
