Shenzhen Yanyue Technology Co., Ltd
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | Yanyue |
| Certification: | CE, FCC |
| Model Number: | PLM-3201TW |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Name: | Industrial Touch Screen Monitor | Touch Screen: | Capacitor Touch Screen |
|---|---|---|---|
| Interface: | DC5V,12V； VGA； USB | Size: | 757.2mm（length）* 451.8mm（width）* 55mm(thickness） |
| Industrial Power Supply: | 5V, 12V | Working Temperature: | 0～60℃ |
| High Light: | industrial touch screen panel,industrial lcd touch screen |
||
PLM-3201TW 32" Wide Touch industrial display,capacitive touch screen
Features:
■ Aluminum alloy wire drawing panel
■ Waterproof grade IP65 for panel
■ DC12V power input
■ Resistance touch screen, OEM capacitive screen
■ Various installation options
| Specification parameters | Optional configuration | |||||||
| Front panel | Aluminum alloy panel,silvery； | Optional black or other colors | ||||||
| Back chassis | 1.2mm Steel plate, Silver；OSD menu | Optional industrial black or other colours | ||||||
| LCD screen | 32 "TFT, LED backlight; resolution 1920 * 1080; lattice: 0.364 * 0.364; maximum color: 16.7M; brightness: 400cd / ㎡; contrast: 1200:1; response speed: 25ms; MTBF: 30000h viewing angle: (+ 89° - 89°) (+ 89° - 89°); | |||||||
| Touch screen | capacitor touch screen | Customization resistance screen | ||||||
| Interface | DC5V,12V； VGA； USB | Customization DVI；HDMI | ||||||
| Size | 757.2mm(length)* 451.8mm(width)* 55mm(thickness) | Weight | 4.5/5KG | |||||
| Industrial Power Supply | 5V, 12V | Optional only 12V input,Optional 12V@5A industrial adapter | ||||||
| Installation mode | Embedded screw installation; Embedded hook installation; VISA wall mounting installation | |||||||
| Work and Environment | ||||||||
| Working temperature | 0～60℃ | Storage temperature | -40～75℃ | Environmental humidity | 0~90% air humidity, no condensation | |||
| IP Level | Panel IP65 | Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration | |||||
| EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration | |||||

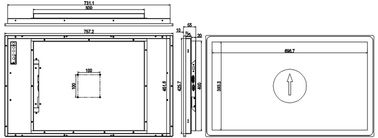

| Installation Dimension Diagram |  |
|||||||
