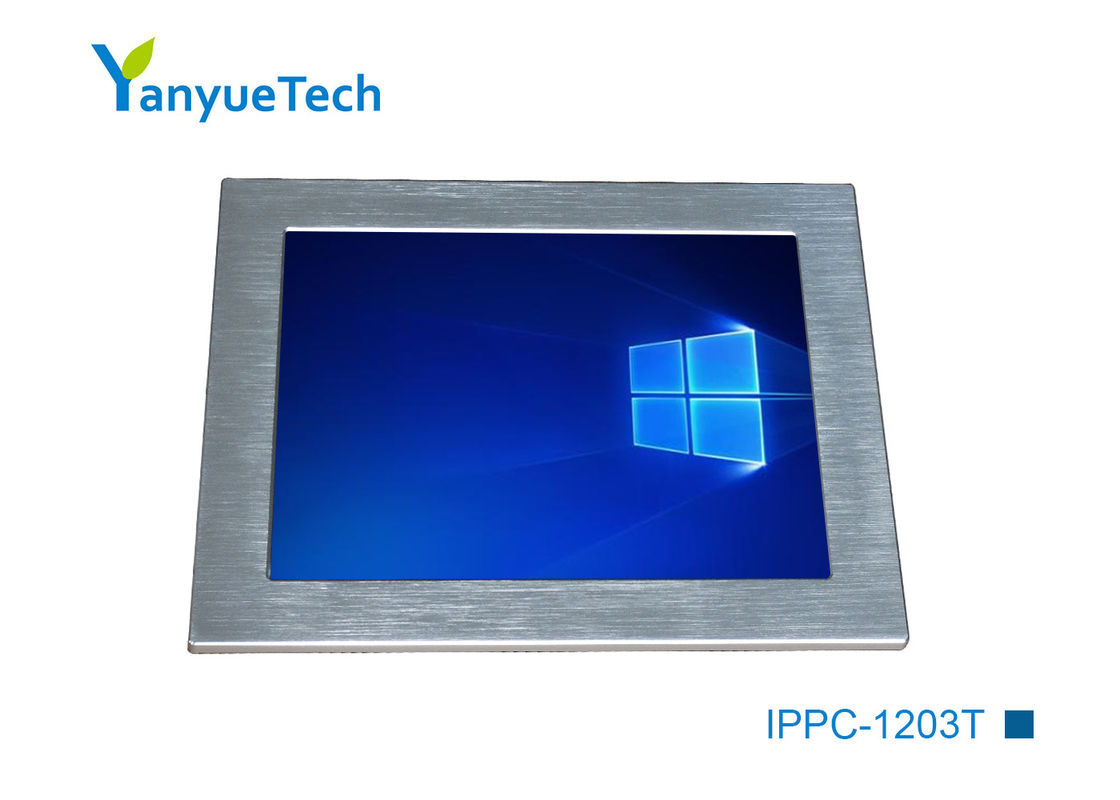

12.1" Panel PC , resistance touch , Industrial Touch Panel PC computer , 2LAN , 4COM , 4USB , IPPC-1203T

12.1" Panel PC , resistance touch , Industrial Touch Panel PC computer , 2LAN , 4COM , 4USB , IPPC-1203T

  • 12.1" Panel PC , resistance touch ,  Industrial Touch Panel PC computer , 2LAN , 4COM , 4USB , IPPC-1203T
  • 12.1" Panel PC , resistance touch ,  Industrial Touch Panel PC computer , 2LAN , 4COM , 4USB , IPPC-1203T
  • 12.1" Panel PC , resistance touch ,  Industrial Touch Panel PC computer , 2LAN , 4COM , 4USB , IPPC-1203T
  • 12.1" Panel PC , resistance touch ,  Industrial Touch Panel PC computer , 2LAN , 4COM , 4USB , IPPC-1203T
12.1" Panel PC , resistance touch ,  Industrial Touch Panel PC computer , 2LAN , 4COM , 4USB , IPPC-1203T
Product Details:
Place of Origin: Guangdong, China
Brand Name: Yanyue
Certification: CE, FCC
Model Number: IPPC-1203T
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: According to Quantity
Payment Terms: T/T
Supply Ability: motherboard 100000 pieces / month ; IPC 5000 sets / month
Contact Now
Detailed Product Description
Name: Industrial Touch Panel PC Adapt Motherboard: Low-power ITX Motherboard
Touch Screen: 5-wire Resistance Screen CPU/GPU: All Generations GPU Of Intel
Memory: 4G/8G/16G DDR3 Hard Disk: 128G/256G/512G/1T SSD
High Light:

industrial touch screen pc

,

embedded touch screen computer

IPPC-1203T 12.1" Panel PC , resistance touch , Industrial Touch Panel PC computer , 2LAN , 4COM , 4USB

Features:

Supports all generations I3/I5/I7 U Series CPU

■ Aluminum brushed panel

■ Waterproof grade IP64 for panel

■ Ultra-low power design

■ 2LAN , 4COM , 4USB

■ Supporting simultaneous installation of mSATA solid state hard disk and 2.5 inch mechanical/solid state hard disk

■ Various installation options

■ Resistance Touch Screen



Specification parameters Optional configuration
Front panel Aluminum alloy panel, the nature of wire drawing oxidation Optional black or other colors, optional sandblasting treatment
Back chassis 1.2mm Steel plate, Silver Optional industrial black or other colours
Adapt motherboard Low-power ITX motherboard All low power ITX motherboards of Yanyue are optional
LCD screen 12.1” TFT,LED backlight; Resolution 1024*768 Lattice:0.297*0.297; Maximum color:16.7M; Brightness:350cd/㎡; Contrast:800:1; Response spee:16ms; MTBF:50,000h Visual angle:(+80° ~ -80°) (+80° ~ -80°);
Touch screen 5-wire resistance screen Customizable Capacitance Screen
CPU/GPU Intel i5 3317U J1900 and 3th/4th/6th/7th/8th/10th Generation U Series CPUs for Selection
Memory 4G DDR3 Optional 2G/8G/16G DDR3 notebook memory
Hard disk 128G MSATA Optional 32G/64G/256G Msata solid state hard disk; 2.5 "500G/1T/2T mechanical hard disk and 512G/1T solid state hard disk
Interface DC12V; 4USB; 2RJ45 (gigabit); VGA; HDMI, audio output; MIC input; 2 antenna aperture; 4COM; DC interpolation Optional 8USB or 6COM or 1LPT; plug-in location can be customized Phoenix terminal, can customize wide-voltage input
Size 315mm(length)* 250mm(width)* 59mm(thickness) Weight 4/5KG
Industrial Power Supply 12V@5A adapter, Taiwan Qiaowei Brand Optional non-configuration
Installation mode Embedded screw installation; Embedded hook installation; VISA wall mounting installation
Work and Environment
Working temperature 0~60℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity, no condensation
IP Level Panel IP64 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration
Installation Dimension Diagram  12.1" Panel PC , resistance touch ,  Industrial Touch Panel PC computer , 2LAN , 4COM , 4USB , IPPC-1203T 0



12.1" Panel PC , resistance touch ,  Industrial Touch Panel PC computer , 2LAN , 4COM , 4USB , IPPC-1203T 112.1" Panel PC , resistance touch ,  Industrial Touch Panel PC computer , 2LAN , 4COM , 4USB , IPPC-1203T 2
