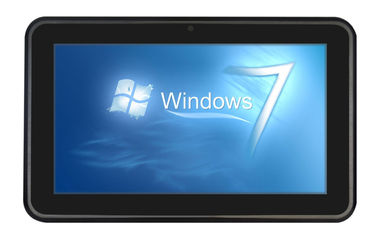

10.1 Inch Industrial Touch Panel PC Capacitive Screen J1900 3805U CPU 2LAN Thin Design

10.1 Inch Industrial Touch Panel PC Capacitive Screen J1900 3805U CPU 2LAN Thin Design

  • 10.1 Inch Industrial Touch Panel PC Capacitive Screen J1900 3805U CPU 2LAN Thin Design
  • 10.1 Inch Industrial Touch Panel PC Capacitive Screen J1900 3805U CPU 2LAN Thin Design
  • 10.1 Inch Industrial Touch Panel PC Capacitive Screen J1900 3805U CPU 2LAN Thin Design
  • 10.1 Inch Industrial Touch Panel PC Capacitive Screen J1900 3805U CPU 2LAN Thin Design
10.1 Inch Industrial Touch Panel PC Capacitive Screen J1900 3805U CPU 2LAN Thin Design
Product Details:
Place of Origin: Guangdong, China
Brand Name: Yanyue
Certification: CE, FCC
Model Number: IPPC-1006TW2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: According to Quantity
Payment Terms: T/T
Supply Ability: motherboard 100000 pieces / month ; IPC 5000 sets / month
Contact Now
Detailed Product Description
Name: Industrial Touch Panel PC Adapt Motherboard: 3.5" J1900 Dedicated Motherboard
Touch Screen: Capacitance Screen CPU/GPU: Intel J1900 Or 3805U
Memory: 4G DDR3 Hard Disk: 64G MSATA
LCD Resolution: 1280*800
High Light:

industrial touch screen panel

,

embedded touch screen computer

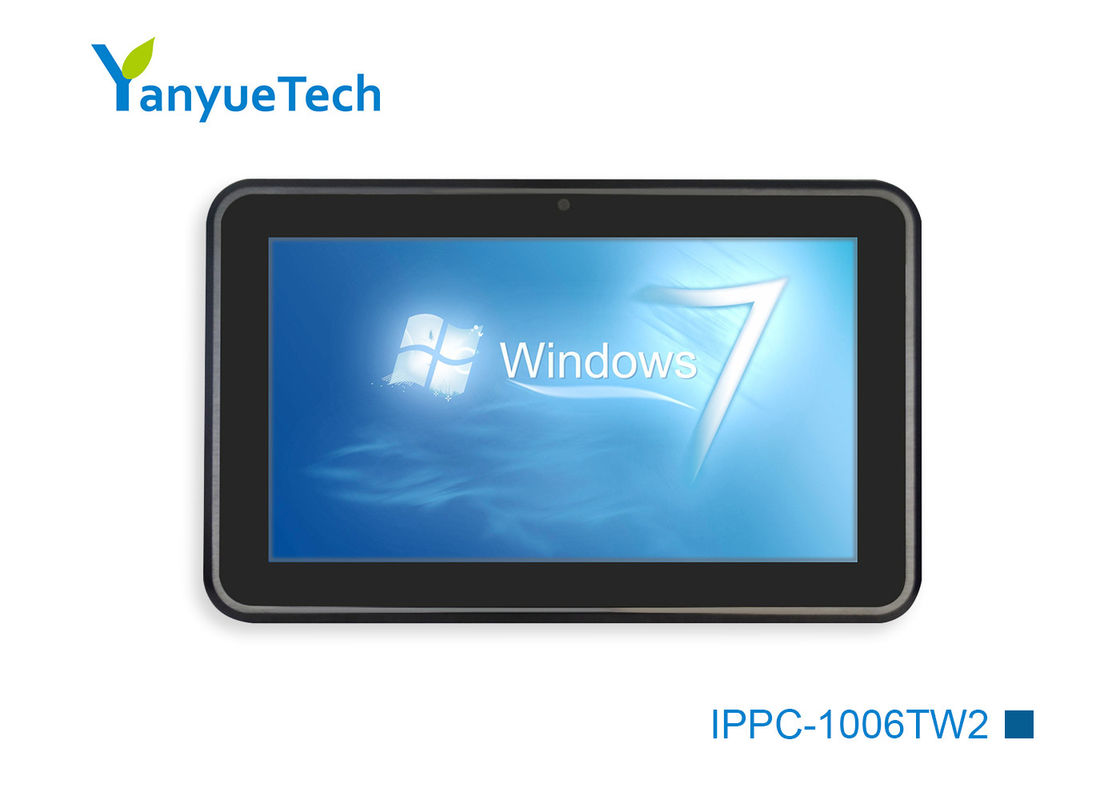

IPPC-1006TW2 10.1" Panel PC ,Capacitance Screen ,  J1900 or 3805U CPU , 2LAN



Features:

■ Ultra-low power and thin design

■ Aluminum brushed panel

■ Waterproof grade IP65 for panel

■ Board sticking J1900 or 3805U CPU

■ 2LAN , 1COM , 3USB

■ Various installation options

Capacitance Touch Screen



Specification parameters Optional configuration
Front panel Aluminum alloy panel, black oxide by wire drawing Optional natural color or other color, optional sandblasting treatment
Back chassis 1.2mm steel plate, black Optional silver or other colors
Adapt motherboard 3.5" J1900 dedicated motherboard Customizable 3.5 inch HM76 dedicated motherboard
LCD screen 10.1” TFT,LED backlight; Resolution 1280*800; Lattice:0.297*0.297; Maximum color:16.7M; Brightness:250cd/㎡; Contrast:800:1; Response spee:16ms; MTBF:30,000h Visual angle:(+80° ~ -80°) (+80° ~ -80°);
Touch screen Capacitance Screen Customizable Resistance Screen
CPU/GPU Intel J1900 Customizable i3/i5/i7 laptop 2/3 generation CPU
Memory 4G DDR3 Optional 2G/8G/16G DDR3 notebook memory
Hard disk 64G MSATA Optional 32G/128G/256G/512G Msata solid state hard disk
Interface DC12V;4USB; 2RJ45(gigabit);VGA;HDMI,audio output; MIC input; 6COM Customize 6USB or 1LPT; Customize Phoenix Terminal, Customize Wide Voltage Input; Customize Wireless Antenna Hole Position
Size 270mm(length)* 185mm(width)* 41mm(thickness) Weight 2/2.5KG
Industrial Power Supply 12V@5A adapter, Taiwan Qiaowei Brand Optional non-configuration
Installation mode Embedded screw installation; Embedded hook installation; VISA wall mounting installation
Work and Environment
Working temperature 0~60℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity, no condensation
IP Level Panel IP65 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration

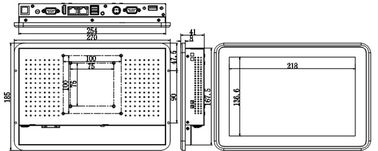

Installation Dimension Diagram  10.1 Inch Industrial Touch Panel PC Capacitive Screen J1900 3805U CPU 2LAN Thin Design 0



10.1 Inch Industrial Touch Panel PC Capacitive Screen J1900 3805U CPU 2LAN Thin Design 110.1 Inch Industrial Touch Panel PC Capacitive Screen J1900 3805U CPU 2LAN Thin Design 2
