Shenzhen Yanyue Technology Co., Ltd
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | Yanyue |
| Certification: | CE, FCC |
| Model Number: | IPPC-1006TW1 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 100000 pieces / month ; IPC 5000 sets / month |

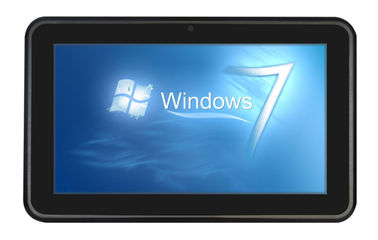

| Name: | Industrial Touch Panel PC | Adapt Motherboard: | 3.5" J1900 Dedicated Motherboard |
|---|---|---|---|
| Touch Screen: | Capacitance Screen | CPU/GPU: | Intel J1900 |
| Memory: | 4G DDR3 | Hard Disk: | 64G MSATA |
| High Light: | industrial touch screen pc,industrial touch screen panel |
||
Features:
■ Ultra-low power design
■ Aluminum brushed panel
■ Waterproof grade IP65 for panel
■ Board sticking J1900 CPU
■ Standardized 2LAN , 6COM , 4USB
■ Various installation options
■ Capacitance Touch Screen
| Specification parameters | Optional configuration | |||||||
| Front panel | Aluminum alloy panel, the nature of wire drawing oxidation | Optional black or other colors, optional sandblasting treatment | ||||||
| Back chassis | 1.2mm Steel plate, Silver | Optional industrial black or other colours | ||||||
| Adapt motherboard | 3.5" J1900 dedicated motherboard | Customizable 3.5 inch HM76 dedicated motherboard | ||||||
| LCD screen | 10.1” TFT,LED backlight； Resolution 1280*800； Lattice:0.297*0.297； Maximum color:16.7M； Brightness:250cd/㎡； Contrast:800:1； Response spee:16ms； MTBF:30,000h Visual angle:(+80° ~ -80°) (+80° ~ -80°)； | |||||||
| Touch screen | Capacitance Screen | Customizable Resistance Screen | ||||||
| CPU/GPU | Intel J1900 | Customizable i3/i5/i7 laptop 2/3 generation CPU | ||||||
| Memory | 4G DDR3 | Optional 2G/8G/16G DDR3 notebook memory | ||||||
| Hard disk | 64G MSATA | Optional 32G/128G/256G/512G Msata solid state hard disk | ||||||
| Interface | DC12V；4USB； 2RJ45(gigabit)；VGA；HDMI,audio output； MIC input； 6COM | Customize 6USB or 1LPT; Customize Phoenix Terminal, Customize Wide Voltage Input; Customize Wireless Antenna Hole Position | ||||||
| Size | 270mm(length)* 185mm(width)* 57mm(thickness) | Weight | 2/2.5KG | |||||
| Industrial Power Supply | 12V@5A adapter | Optional non-configuration | ||||||
| Installation mode | Embedded screw installation; Embedded hook installation; VISA wall mounting installation | |||||||
| Work and Environment | ||||||||
| Working temperature | 0～60℃ | Storage temperature | -40～75℃ | Environmental humidity | 0~90% air humidity, no condensation | |||
| IP Level | Panel IP65 | Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration | |||||
| EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration | |||||
| Installation Dimension Diagram |  |
|||||||
