Place of Origin: | Guangdong, China |
Brand Name: | Yanyue |
Certification: | CE, FCC |
Model Number: | MATX-B85AH2CI |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden Box |
Delivery Time: | According to Quantity |
Payment Terms: | T/T |
Supply Ability: | motherboard 100000 pieces / month ; IPC 5000 sets / month |
CPU/GPU: | 4th Generation Intel® Core™ Processor I7/ I5/ I3, Pentium®/ Celeron® (Socket LGA1150) | Chipset: | Intel@ PCH B85 |
---|---|---|---|
Memory: | 2x DDR3 DIMM Sockets, Supporting Up To 16GB SDRAM | Storage: | 2×SATA , MSATA |
Ethernet: | 2 Gigabit LAN | USB2.0: | 16 |
USB3.0: | 2 | Graphics Interface: | 2VGA, HDMI |
Display: | CPU Integrated Graphics | Audio: | Realtek ALC662, Supports 5.1 Channels |
GPIO: | 8bit | COM: | 12COM RS232, COM2 Support RS422/485) |
High Light: | b75 matx motherboard,msi h110 pro lga |

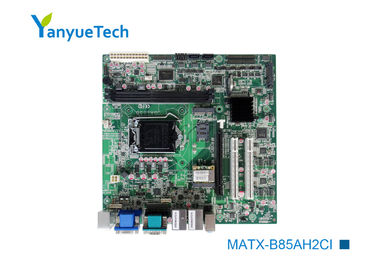

MATX-B85AH2CI Micro ATX Motherboard, Intel@ PCH B75 Chip, 2LAN/6COM/12USB, 4 Slot(2PCI)
Feature
■ 2VGA, HDMI Graphics Interface
■ 12COM RS232 , COM2 Support RS422/485
■ 16USB2.0, 2USB3.0
■ 8 bit GPIO
■ 1PCIEx16; 2PCI expand
■ 256 grade Watchdog Timer
Specification
CPU/GPU |
4th Generation Intel® Core™ Processor i7/ i5/ i3, Pentium®/ Celeron® (Socket LGA1150) |
|||||
Chipset | Intel@ PCH B85 | |||||
Memory | 2x DDR3 DIMM sockets, supporting up to 16GB SDRAM | |||||
Storage | 2×SATA , MSATA | |||||
Audio | Realtek ALC662, supports 5.1 channels | |||||
Ethernet | 2 Gigabit LAN | |||||
Display | CPU integrated graphics | |||||
Graphics Interface | 2VGA, HDMI | |||||
USB2.0 | 16 | |||||
USB3.0 | 2 | |||||
GPIO | 8bit | |||||
COM | 12COM RS232, COM2 support RS422/485) | |||||
Backplane I / O | PS2+2USB2.0, VGA+HDMII,COM+VGA, 2 RJ45 LAN+2USB3.0+2USB2.0, Line-out/in+Mic-in | |||||
Board I / O Pin | 12USB2.0 , 11COM , front audio , CLR_CMOS , CPU fan power , System fan power , GPIO, Front panel , 24P+4P ATX, Print | |||||
Expand | 1PCIEx16; 2PCI; 2Mini PCIE | |||||
System | Support Windows(WIN 7, WIN 10...), Linux | |||||
Mechanical & Environmental | ||||||
Power supply | Micro ATX | Heat dissipation | Fan | Size(L×W) | 244mm×244mm | |
Working temperature | -15~55℃ | Storage temperature | -40~75℃ | Environmental humidity | 0~90% air humidity,no condensation | |
Packing list | MATX-B85AH2CI motherboard ×1, SATA Data wire ×1, Interface board×1, 4COM wire x1 |
