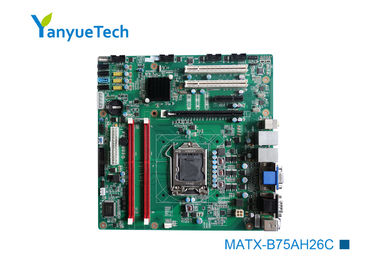

MATX-B75AH26C 2 Gigabit LAN Micro ATX Motherboard / Intel PCH B75 Matx Motherboard 8 USB2.0

MATX-B75AH26C 2 Gigabit LAN Micro ATX Motherboard / Intel PCH B75 Matx Motherboard 8 USB2.0

  • MATX-B75AH26C 2 Gigabit LAN Micro ATX Motherboard / Intel PCH B75 Matx Motherboard 8 USB2.0
  • MATX-B75AH26C 2 Gigabit LAN Micro ATX Motherboard / Intel PCH B75 Matx Motherboard 8 USB2.0
  • MATX-B75AH26C 2 Gigabit LAN Micro ATX Motherboard / Intel PCH B75 Matx Motherboard 8 USB2.0
MATX-B75AH26C 2 Gigabit LAN Micro ATX Motherboard / Intel PCH B75 Matx Motherboard 8 USB2.0
Product Details:
Place of Origin: Guangdong, China
Brand Name: Yanyue
Certification: CE, FCC
Model Number: MATX-B75AH26C
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: According to Quantity
Payment Terms: T/T
Supply Ability: motherboard 100000 pieces / month ; IPC 5000 sets / month
Contact Now
Detailed Product Description
CPU/GPU: 2nd/3rd Generation Intel® Core™ Processor I7/ I5/ I3, Pentium®/ Celeron® (Socket LGA1155) Chipset: Intel@ PCH B75
Memory: 4 X DDR3 DIMM Sockets, Supporting Up To 32GB SDRAM Storage: 6×SATA
Ethernet: 2 Gigabit LAN USB2.0: 8
USB3.0: 4 Graphics Interface: VGA, DVI
Display: CPU Integrated Graphics Audio: Realtek ALC662, Supports 5.1 Channels
High Light:

gigabyte h310m a lga 1151 matx intel motherboard

,

msi h110 pro lga





MATX-B75AH26C Micro ATX Motherboard, Intel@ PCH B75 Chip, 2LAN/6COM/12USB, 4 Slot(2PCI)





Feature



■ Support LGA1155 socket for 2nd/3rd Gen. Intel® CoreProcessor
■ 2 Gigabit LAN

■ VGA, DVI Graphics Interface



■ 6COM, COM3 support RS232/422/485



■ 8USB2.0, 4USB3.0



■ 256 grade Watchdog Timer



■ 8 bit GPIO(4 In, 4 Out)



■ 1PCIEx16; 1PCIEx4; 2PCI expand







Specification







CPU/GPU

2nd/3rd Generation Intel® Core™ Processor i7/ i5/ i3, Pentium®/ Celeron®

(Socket LGA1155)

Chipset Intel@ PCH B75
Memory 4 x DDR3 DIMM sockets, supporting up to 32GB SDRAM
Storage 6×SATA
Audio Realtek ALC662, supports 5.1 channels
Ethernet 2 Gigabit LAN
Display CPU integrated graphics
Graphics Interface VGA, DVI
USB2.0 8
USB3.0 4
GPIO 8bit(4In, 4Out)
COM 6COM RS232, COM3 support RS422/485)
Backplane I / O PS2 KB/MS, 2COM,VGA+DVI, 2 RJ45 LAN+4USB3.0, Line-out+Mic-in
Board I / O Pin 8USB2.0 , 4COM , front audio , CLR_CMOS , CPU fan power , System fan power , GPIO, Front panel , Speaker, 24P+4P ATX, Print
Expand 1PCIEx16; 1PCIEx4; 2PCI
System Support Windows(WINXP, WIN 7, WIN 10...), Linux
Mechanical & Environmental
Power supply Micro ATX Heat dissipation Fan Size(L×W) 245mm×245mm
Working temperature -15~55℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity,no condensation
Packing list MATX-B75AH26C motherboard ×1, SATA Data wire ×1, Interface board×1, COM wire x2
