Shenzhen Yanyue Technology Co., Ltd
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | Yanyue |
| Certification: | CE, FCC |
| Model Number: | ITX-J1800DL288 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 100000 pieces / month ; IPC 5000 sets / month |
| CPU/GPU: | Soldered Onboard Intel® J1800 CPU | Memory: | 1 X DDR3 SO-DIMM Sockets, Supporting Up To 8GB SDRAM |
|---|---|---|---|
| Storage: | 2×SATA ，1×M-SATA | Audio: | Realtek ALC662, Supports 5.1 Channels |
| USB2.0: | 8 | GPIO: | 8bit(4 Bit In, 4 Bit Out) |
| COM: | 8 RS232 Serial | Expand: | 1 MINI PCIE, 1 PCI Slot |
| High Light: | intel itx board,intel thin mini itx |
||

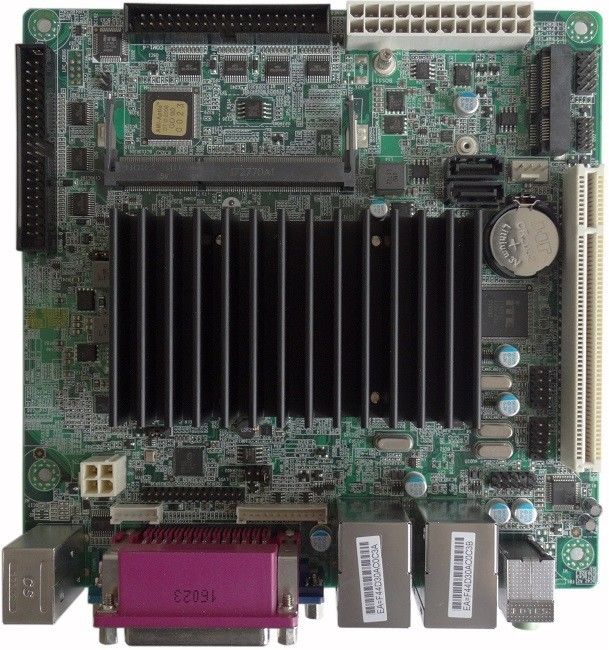

ITX-J1800DL288 Mini ITX Motherboard, Soldered Onboard Intel® J1800 CPU, 8COM
Feature
■ Soldered Onboard Intel®J1800 CPU
■ 2 Gigabit LAN
■ VGA, LVDS Graphics Interface
■ 8COM, 8USB2.0
■ 8 bit GPIO
■ 1 PCI Slot
Specification
| CPU/GPU | Soldered Onboard Intel® J1800 CPU | |||||
| Memory | 1 x DDR3 SO-DIMM sockets, supporting up to 8GB SDRAM | |||||
| Storage | 2×SATA ,1×M-SATA | |||||
| Audio | Realtek ALC662, supports 5.1 channels | |||||
| Ethernet | 2 Gigabit LAN | |||||
| Display | CPU integrated graphics | |||||
| Graphics Interface | 1×VGA, 1× LVDS | |||||
| USB2.0 | 8 | |||||
| GPIO | 8bit(4 bit In, 4 bit Out) | |||||
| COM | 8 RS232 serial | |||||
| Backplane I / O | PS/2 KB/MS, COM+VGA+PRINT, 2 RJ45 LAN+4 USB2.0, Line-out+Mic-in | |||||
| Board I / O Pin |
4USB , 7COM , front audio , CLR_CMOS , CPU fan power , System fan power , GPIO Front panel , Speaker, LVDS, invert, 24P+4P ATX |
|||||
| Expand | 1 MINI PCIE, 1 PCI Slot | |||||
| System | Support Windows(WIN 7, WIN 10...), Linux | |||||
| Mechanical & Environmental | ||||||
| Power supply | ATX | Heat dissipation | Cooling fin | Size(L×W) | 170mm×170mm | |
| Working temperature | -15~55℃ | Storage temperature | -40~75℃ | Environmental humidity | 0~90% air humidity,no condensation | |
| Packing list | ITX-J1800AH288 motherboard ×1, SATA Data wire ×1, Interface Board ×1, 4COM wire ×2 | |||||
