Shenzhen Yanyue Technology Co., Ltd
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | Yanyue |
| Certification: | CE, FCC |
| Model Number: | ITX-H310DL208 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 100000 pieces / month ; IPC 5000 sets / month |
| CPU/GPU: | 8th Generation Intel® Core™ Processor I7/ I5/ I3, Pentium®/ Celeron® (Socket LGA1151) | Chipset: | Intel@ PCH H310 |
|---|---|---|---|
| Memory: | 2 X DDR4 SO-DIMM Sockets, Supporting Up To 32GB SDRAM | Storage: | 1×SATA ，1×M-SATA |
| Audio: | Realtek ALC662, Supports 5.1 Channels | USB2.0: | 6 |
| USB3.0: | 2 | COM: | No, 1RS232 Optional |
| High Light: | intel itx board,intel thin mini itx |
||

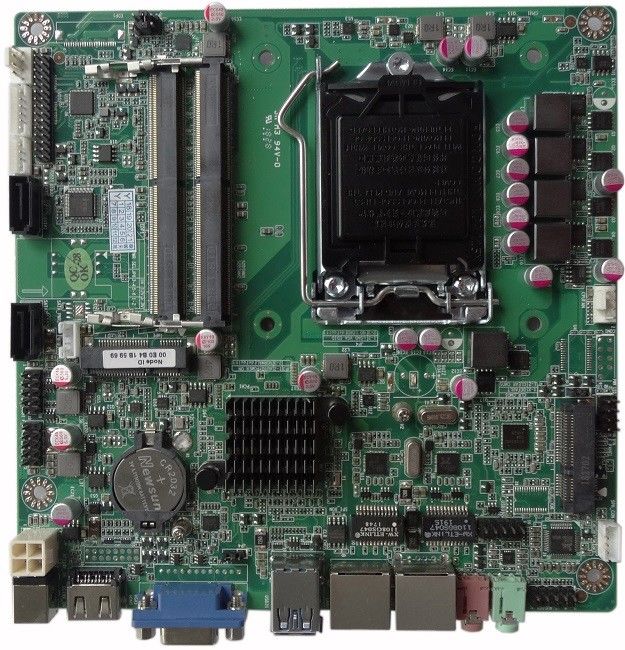

ITX-H310DL208 Mini ITX Motherboard, Intel@ PCH H310 Chip, Support 8th Gen. Intel® CPU
Feature
■ Support discrete graphics
■ VGA, HDMI, LVDS Graphics Interface
■ 2LAN, 6USB2.0, 2USB3.0
Specification
| CPU/GPU |
8th Generation Intel® Core™ Processor i7/ i5/ i3, Pentium®/ Celeron® (Socket LGA1151) |
||||||
| Chipset | Intel@ PCH H310 | ||||||
| Memory | 2 x DDR4 SO-DIMM sockets, supporting up to 32GB SDRAM | ||||||
| Storage | 1×SATA ,1×M-SATA | ||||||
| Audio | Realtek ALC662, supports 5.1 channels | ||||||
| Ethernet | 2 Gigabit LAN | ||||||
| Display | CPU integrated graphics | ||||||
| Graphics Interface | VGA, 1×HDMI, LVDS | ||||||
| USB2.0 | 6 | ||||||
| USB3.0 | 2 | ||||||
| COM | No, 1RS232 optional | ||||||
| Backplane I / O | DC in, HDMI, VGA, 2USB3.0, 2 RJ45 LAN, Line-out+Mic-in | ||||||
| Board I / O Pin | 6USB2.0 , front audio , CLR_CMOS , CPU fan power , System fan power , Front panel , Speaker, 4P DC In, JHDMI(optional), JVGA(optional), COM(optional) | ||||||
| Expand | 1 MINI PCIE | ||||||
| System | Support Windows(WIN 7, WIN 10...), Linux | ||||||
| Mechanical & Environmental | |||||||
| Power supply | DC12~19V | Heat dissipation | Fan | Size(L×W) | 170mm×170mm | ||
| Working temperature | -15~55℃ | Storage temperature | -40~75℃ | Environmental humidity | 0~90% air humidity,no condensation | ||
| Packing list | ITX-H310DL208 motherboard ×1, Sata Data wire ×1, Sata Power wire×1 | ||||||
| Order Information | |||||||
| ITX-H310DL208 | 2LAN | ||||||
| ITX-H310DL108 | 1LAN | ||||||
