3.5" Motherboard Single Board Computer PC/104 Expansion LX800 CPU 256M Memory 2LAN 6COM 8USB

3.5" Motherboard Single Board Computer PC/104 Expansion LX800 CPU 256M Memory 2LAN 6COM 8USB

  • 3.5" Motherboard Single Board Computer PC/104 Expansion LX800 CPU 256M Memory 2LAN 6COM 8USB
  • 3.5" Motherboard Single Board Computer PC/104 Expansion LX800 CPU 256M Memory 2LAN 6COM 8USB
  • 3.5" Motherboard Single Board Computer PC/104 Expansion LX800 CPU 256M Memory 2LAN 6COM 8USB
3.5" Motherboard Single Board Computer PC/104 Expansion LX800 CPU 256M Memory 2LAN 6COM 8USB
Product Details:
Place of Origin: Guangdong, China
Brand Name: Yanyue
Certification: CE, FCC
Model Number: ES3-LX800DL124
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: According to Quantity
Payment Terms: T/T
Supply Ability: motherboard 100000 pieces / month ; IPC 5000 sets / month
Contact Now
Detailed Product Description
Name: 3.5" Motherboard CPU/GPU: Soldered On Board AMD® LX800 500M Hz CPU
Memory: Soldered On Board 256M DDR SDRAM Storage: 1×IDE ,1 CF Socket
Expansion: PC/104 Backplane I / O: COM , VGA, PS/2, RJ45 LAN, 2USB2.0
Graphics Interface: 1×VGA, 1× LVDS USB2.0: 4
Ethernet: 10M/100M GPIO: 16bit
High Light:

single board computer intel cpu

,

intel sbc board

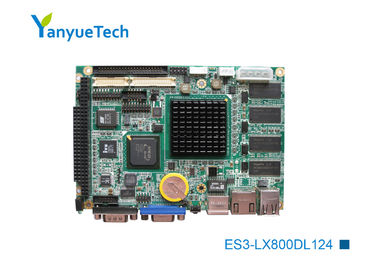

ES3-LX800DL124​  3.5” Motherboard Single board computer, Soldered Onboard AMD® LX800 CPU, 1LAN/2COM/4USB



Feature

■ Soldered On board AMD LX800 CPU

■ Soldered On board 256M DDR Memory

■ 10M/100M LAN

■ VGA, LVDS Graphics Interface

■ 2COM RS232(COM2 Support RS422/485)

■ 4USB2.0

■ 16bit GPIO

■ PC/104 expend

■ 1~255S reset Watchdog Timer





Specification

CPU/GPU Soldered On board AMD® LX800 500M Hz CPU
Memory Soldered On board 256M DDR SDRAM
Storage 1×IDE ,1 CF socket
Audio Realtek AC’97 Audio
Ethernet 10M/100M
Display CPU integrated graphics
Graphics Interface 1×VGA, 1× LVDS
USB2.0 4
USB3.0 0
GPIO 16bit
COM 2RS232 serial, COM2 support RS422/RS485
Backplane I / O COM , VGA, PS/2, RJ45 LAN, 2USB2.0
Board I / O Pin 2USB , COM , front audio , CLR_CMOS , CPU fan power , System fan power , GPIO
Front panel , 8P ATX, LVDS, invert, Print, IDE
Expand PC/104
System Support Windows(WINXP...), Linux
Mechanical & Environmental
Power supply DC5V, 12V Heat dissipation Cooling fin Size(L×W) 146mm×102mm
Working temperature -15~55℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity,no condensation
Packing list ES3-LX800DL124 board ×1, IDEwire ×1, ATX power wire ×1, COM wire ×1,
Print wire x1, Audio wire x1, USB wire x1
