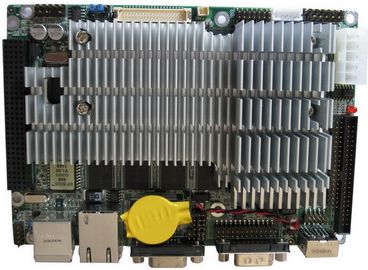

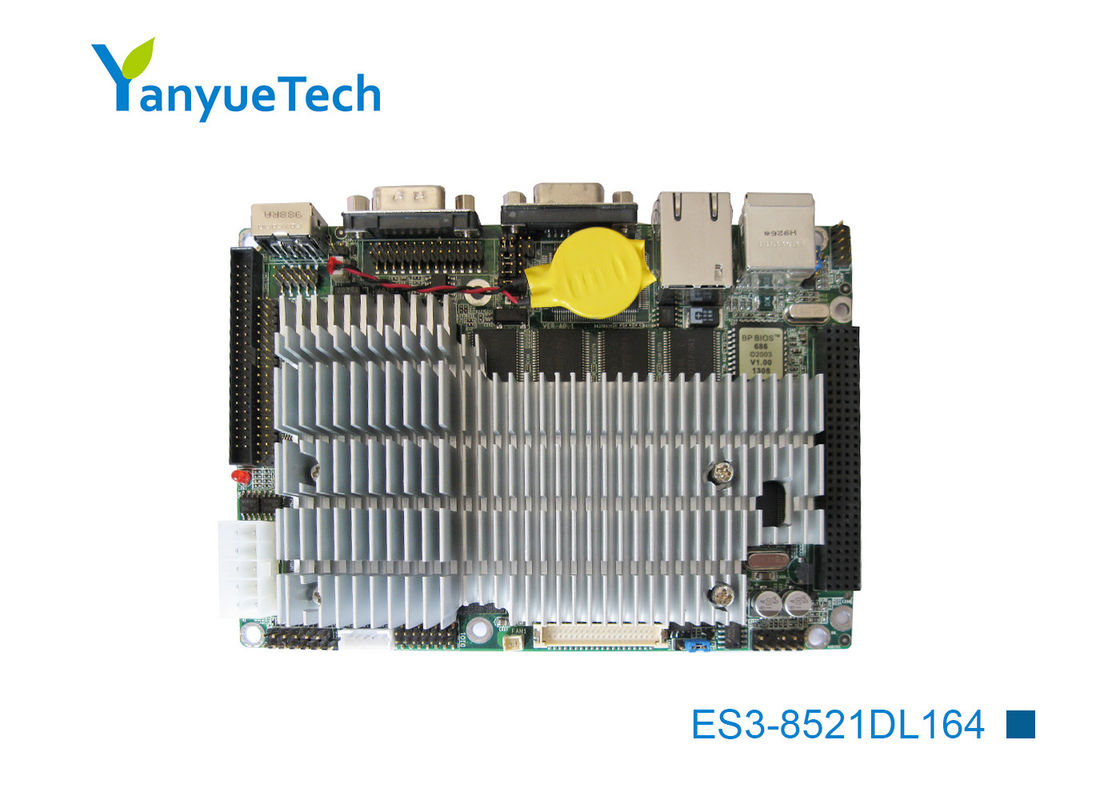

ES3-8521DL164​ 3.5 Inch Single Board Computer Soldered On Board Intel® CM900M CPU 512M Memory PCI-104 Expend

ES3-8521DL164​ 3.5 Inch Single Board Computer Soldered On Board Intel® CM900M CPU 512M Memory PCI-104 Expend

  • ES3-8521DL164​ 3.5 Inch Single Board Computer Soldered On Board Intel® CM900M CPU 512M Memory PCI-104 Expend
  • ES3-8521DL164​ 3.5 Inch Single Board Computer Soldered On Board Intel® CM900M CPU 512M Memory PCI-104 Expend
  • ES3-8521DL164​ 3.5 Inch Single Board Computer Soldered On Board Intel® CM900M CPU 512M Memory PCI-104 Expend
ES3-8521DL164​ 3.5 Inch Single Board Computer Soldered On Board Intel® CM900M CPU 512M Memory PCI-104 Expend
Product Details:
Place of Origin: Guangdong, China
Brand Name: Yanyue
Certification: CE, FCC
Model Number: ES3-8521DL164
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: According to Quantity
Payment Terms: T/T
Supply Ability: motherboard 100000 pieces / month ; IPC 5000 sets / month
Contact Now
Detailed Product Description
Name: 3.5" Motherboard CPU/GPU: Soldered On Board Intel®Celeron M 900M Hz CPU
CHIP: Intel@852GM Or 855GM Storage: 1×IDE ,1 CF Socket
Ethernet: 10M/100M Audio: Realtek AC’97 Audio
Graphics Interface: 1×VGA, 1× LVDS USB2.0: 4
GPIO: 16bit Display: CPU Integrated Graphics
High Light:

3.5 inch single board computer

,

intel sbc board







ES3-8521DL164​ 3.5” Single board computer, Soldered On board Intel® CM900M CPU and 512M Memory,PCI-104 expend





Feature





■ Soldered On board Intel® C-M 900M Hz CPU



■ Soldered On board 512M DDR Memory



■ 10M/100M LAN



■ VGA, LVDS Graphics Interface



■ 6COM RS232(COM2 Support RS422/485)



■ 4USB2.0



■ 16bit GPIO



■ PCI-104 expend

■ 1~255S reset Watchdog Timer





Specification





CPU/GPU Soldered On board Intel®Celeron M 900M Hz CPU
CHIP Intel@852GM or 855GM
Memory Soldered On board 512M DDR SDRAM
Storage 1×IDE ,1 CF socket
Audio Realtek AC’97 Audio
Ethernet 10M/100M
Display CPU integrated graphics
Graphics Interface 1×VGA, 1× LVDS
USB2.0 4
GPIO 16bit
COM 6 RS232 serial, COM2 support RS422/RS485
Backplane I / O PS/2, COM , VGA, RJ45 LAN, 2USB2.0
Board I / O Pin 2USB , 5 COM , front audio , CLR_CMOS , CPU fan power , System fan power , GPIO
Front panel , 8P ATX, LVDS, invert, Print, IDE
Expand PCI-104
System Support Windows(WINXP...), Linux
Mechanical & Environmental
Power supply ATX Heat dissipation Cooling fin Size(L×W) 146mm×102mm
Working temperature -15~55℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity,no condensation
Packing list ES3-8521DL164 board ×1, IDEwire ×1, ATX power wire ×1, COM wire ×5,
Print wire x1, Audio wire x1, USB wire x1
