Shenzhen Yanyue Technology Co., Ltd
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | Yanyue |
| Certification: | CE, FCC |
| Model Number: | IPPC-1501T |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 100000 pieces / month ; IPC 5000 sets / month |
| Name: | Industrial Touch Panel PC | Adapt Motherboard: | MINI-ITX Motherboard |
|---|---|---|---|
| Touch Screen: | 5-wire Resistance Screen | CPU/GPU: | Intel I3 2120 |
| Memory: | 4G DDR3 | Hard Disk: | 128G MSATA |
| High Light: | industrial touch screen panel,embedded touch screen computer |
||
Features:
■ Aluminum alloy wire drawing pane
■ Waterproof grade IP65 for panel
■ Supporting High Performance Desktop I3/I5/I7 Series CPUs
■ A PCI or PCIE extension
■ Standardized Dual Network 4 Series 6 USB
■ Supporting simultaneous installation of mSATA solid state hard disk and 2.5 inch mechanical/solid state hard disk
■ Various installation options
■ Resistance Touch Screen, OEM Capacitance Screen
| Specification parameters | Optional configuration | |||||||
| Front panel | Aluminum alloy panel, the nature of wire drawing oxidation | Optional black or other colors, optional sandblasting treatment | ||||||
| Back chassis | 1.2mm Steel plate, Silver | Optional industrial black or other colours | ||||||
| Adapt motherboard | MINI-ITX motherboard | All low power ITX motherboards of Yanyue are optional | ||||||
| LCD screen | 15"TFT, LED backlight; Resolution 1024*768; Lattice: 0.297*0.297; Maximum color: 16.2M; Brightness: 300cd/; Contrast: 1500:1; Response speed: 35ms; MTBF: 50,000h visual angle: (+85 -85) (+85 -85); | |||||||
| Touch screen | 5-wire resistance screen | Customizable Capacitance Screen | ||||||
| CPU/GPU | Intel i3 2120 | Supporting 3, 4, 6 and 7 generations of desktop CPUs | ||||||
| Memory | 4G DDR3 | Optional 2G/8G/16G DDR3 notebook memory | ||||||
| Hard disk | 128G MSATA | Optional 32G/64G/256G Msata solid state hard disk; 2.5" 500G/1T/2T mechanical hard disk and 512G/1T solid state hard disk | ||||||
| Interface | AC input; 6USB (2 USB3.0); 2RJ45 (gigabit); 2VGA; HDMI, audio output; MIC input; 1 antenna aperture; 4COM; | Customizable 8USB or 10COM or 1LPT | ||||||
| Extension | 1 PCI Extension | 4 Generations, 6 Generations, 7 Generations Support 1 PCIEx16 Extension | ||||||
| Size | 415mm(length)* 313mm(width)* 102mm(thickness) | Net/Gross Weight | 6/7KG | |||||
| Industrial Power Supply | 200W Industrial 1U Power Supply | |||||||
| Installation mode | Embedded screw installation; Embedded hook installation; VISA wall mounting installation | |||||||
| Work and Environment | ||||||||
| Working temperature | 0～60℃ | Storage temperature | -40～75℃ | Environmental humidity | 0~90% air humidity, no condensation | |||
| IP Level | Panel IP65 | Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration | |||||
| EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration | |||||

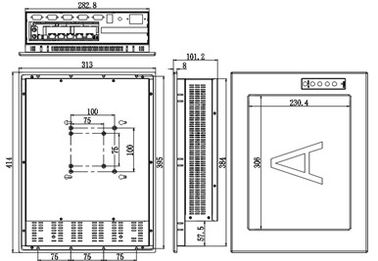

| Installation Dimension Diagram |  |
|||||||
